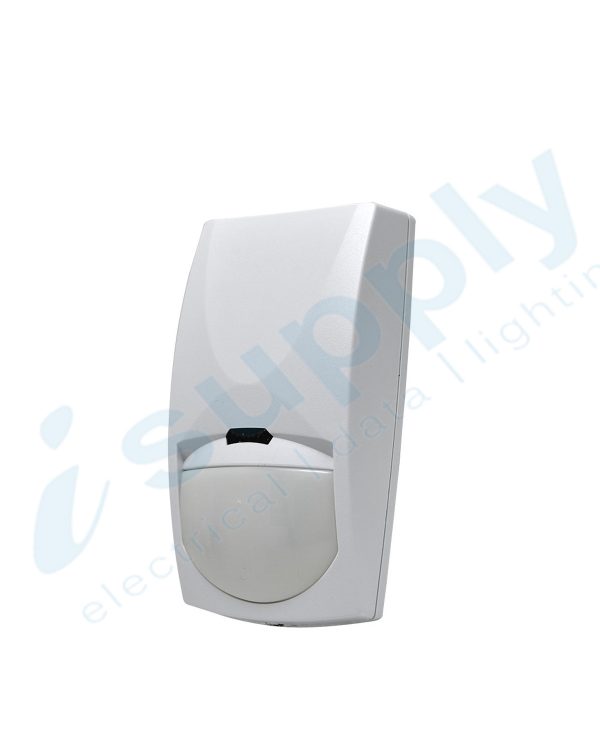

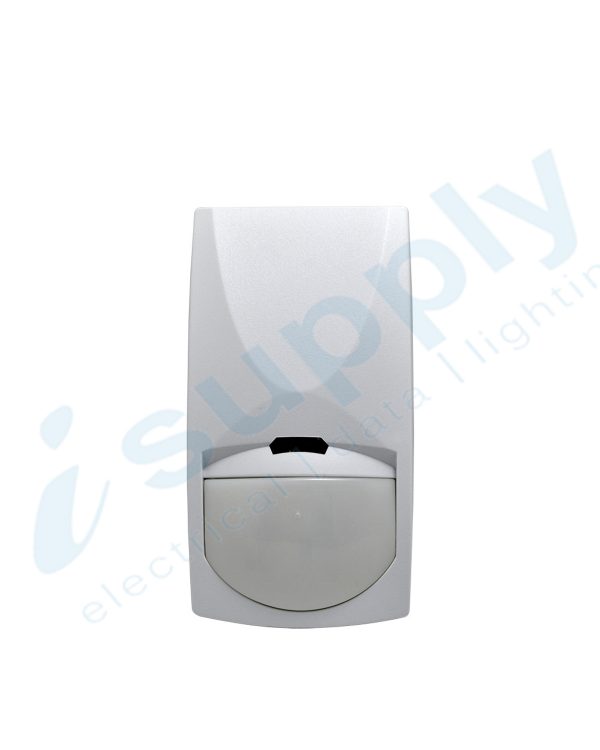

This PIR sensor features quad element imaging technology, adjustable microwave and PIR sensitivity settings, pet immunity technology, bi-directional auto temperature compensation and a unique microwave motion sensor module with micro strip patch antenna.
Product features:
• Detection range up to 15m
• Wall mounted with built-in screwholes - no bracket required
• Adjustable microwave sensitivity (2x settings)
• Adjustable PIR sensitivity (2x settings)
• Adjustable pet immunity (15 or 25Kg)
• Alarm Output: N.C.
• Tamper switch: N.C.
• RFI Protection: 30V/m 10-100MHZ
• EMI/Protection: 50,000 of electrical
• Microwave Frequency: 10.525/24.125Ghz
• Dimensions: 115 x 62 x 35mm
* Brackets not included
SPECIFICATIONS
Type: Motion Sensor
Warranty (Years): 2
Shipping Weight and Dimensions
Includes product and packages
Width: 45mm
Height: 65mm
Depth: 120mm
Weight: 0.11kg
Additional information
| Manufacturer | |
|---|---|
| Weight | 0.11 |
