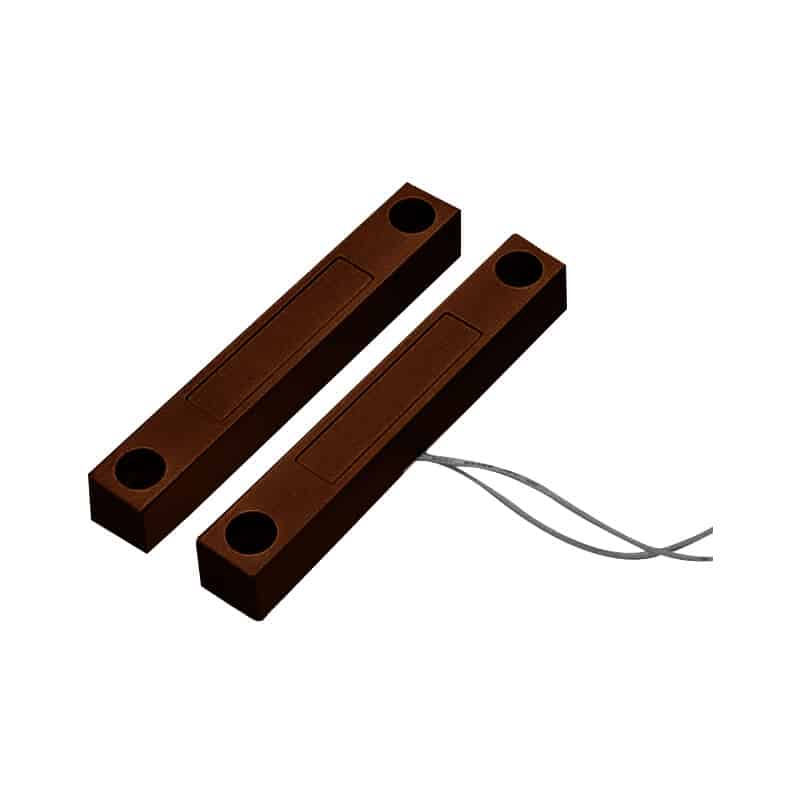

The RSW-M1 is a heavy duty hard wired reed switch, designed for window and door applications.
Product features:
• Heavy duty magnetic contact switch
• Large magnet sensor gap, up to 50mm
• Normally closed (NC) reed switch output
• 10W maximum contact rating (up to 100V, 0.5A)
• 250mm sensor leads (22 AWG / Ø0.64mm)
• Robust casing of zinc alloy construction

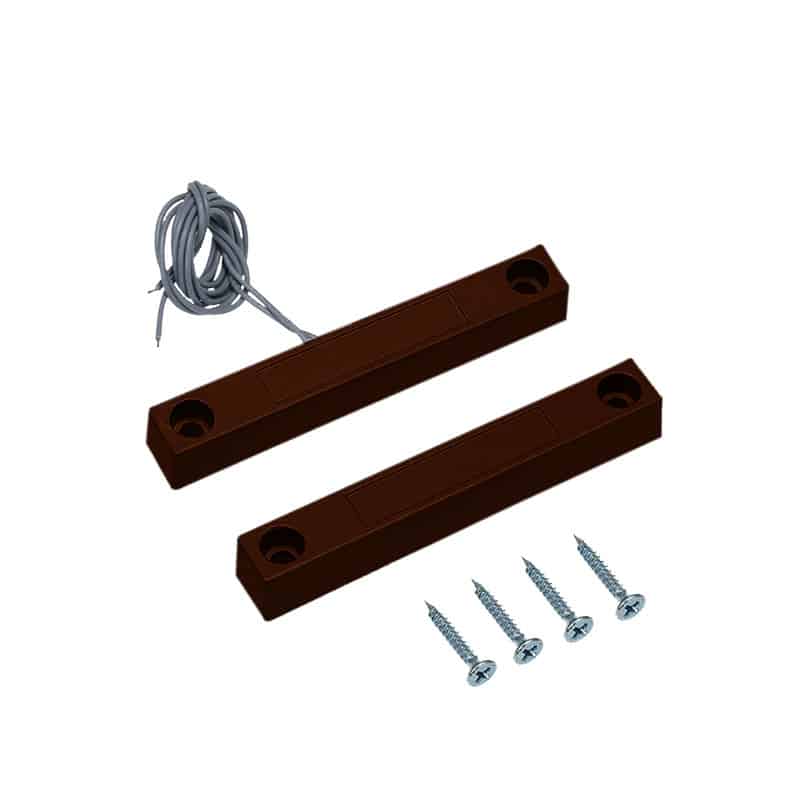

• Surface Mounted, screws included

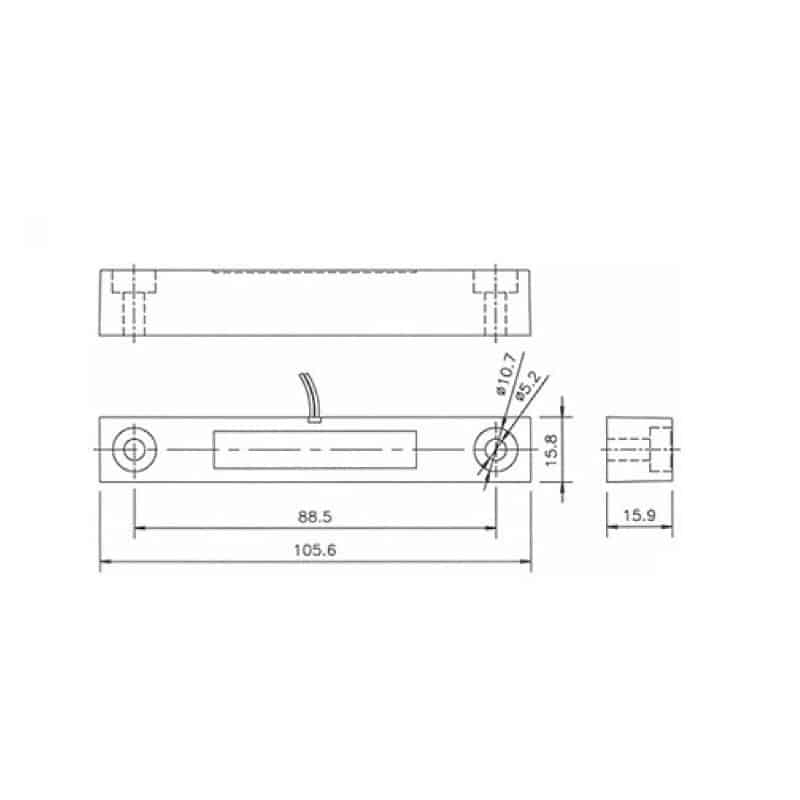

• Dimensions 106 x 16 x 16mm
Available in silver, white or brown casing.
Specifications
Contact: N/C
Dimensions: 160mm x 16mm x 16mm
Gap: 50mm
Max Current: 0.5A
Max Rating: 10W
Max Voltage: 100VDC
Type: Reed Switch
Warranty (Years): 1
Shipping Weight and Dimensions Includes product packaging
Width: 30 mm
Height: 90 mm
Depth: 20 mm
Weight: 0.04 kg
Additional information
| Manufacturer | |
|---|---|
| Weight | 0.04 |
