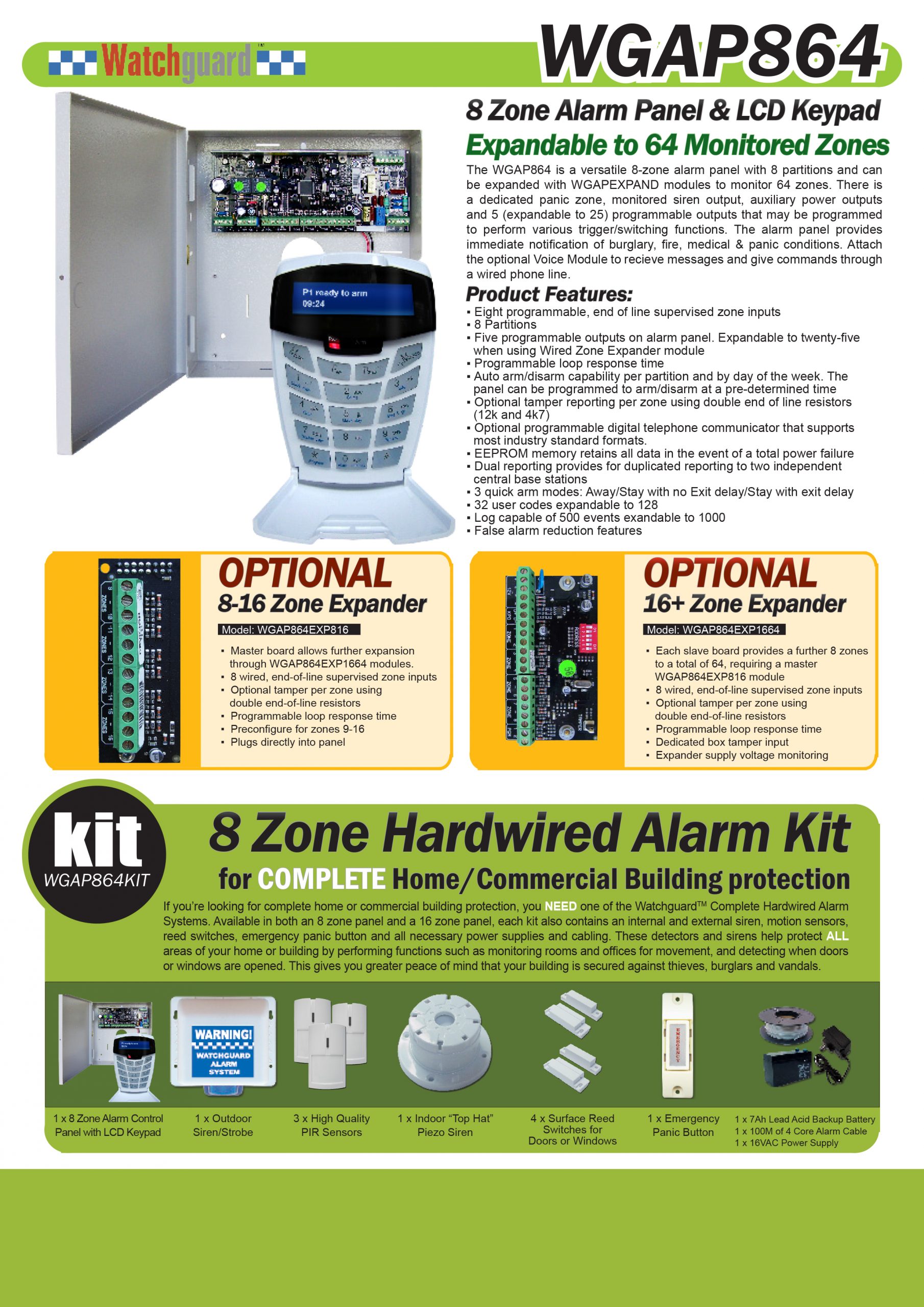

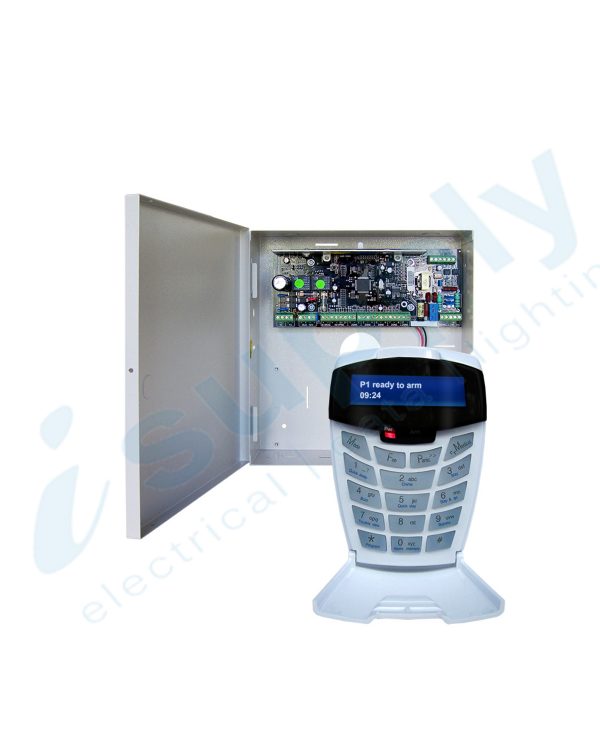

The WGAP864 is a versatile, microprocessor-based, fully featured 8/64 Zone alarm panel, which has eight partitions. The alarm panel provides immediate notification of burglary, fire, medical & panic conditions. There is a dedicated panic zone, monitored siren output, auxiliary power outputs and five (expandable to 25) programmable outputs that may be programmed to perform various trigger/switching functions. Program via USB cable in less than 30 Seconds! USB Programming Cable Sold Separately (Model: WGAPCABLEUSB)
PRODUCT FEATURES
- 64 zones (up to 16 onboard)
- 8 partitions
- Supports up to 8 keypads
- 128 user codes
- 25 fully programmable outputs
- Ability to log up to 1000 events
- 1.5A available onboard power (dual power supply)
- Dedicated 500mA battery charger for optimal backup battery management
- Up to 4 bus receivers (fully programmable from the keypad)
- IDSs renowned one-button arming
- 3 quick arm modes: Stay, (2) Away and (3) Stay and Go
- 4 stay profiles (quick-select specific stay profiles via keypad shortcut): Stay, Night Stay, Day Stay, Perimeter
- Supports star or daisy chain modules up to 300m
- Dual and split reporting
- Dynamic battery self-test
- Dedicated panic zone
- Optional tamper per zone
- Separate box tamper zone
- Maintenance code
- No activity arming
- Recall bypass selected
- Auto arm/disarm per partition
- User-enabled chime and buzz zones
- Programmable loop response time
- Excellent protection against lightning (provided by “zap tracking” and transient suppressors)
- Telephone communicator
- Expanded heat sink
Additional Accessories:
• Expand the original WGAP864 to wireless 16 zones by simply plugging the 16 Channel Wireless Receiver directly onto the main panel. (Model No: WGAP864WRX16)
• 2 Channel Receiver for WGAP864 (Model No: WGAP864WRX2)
