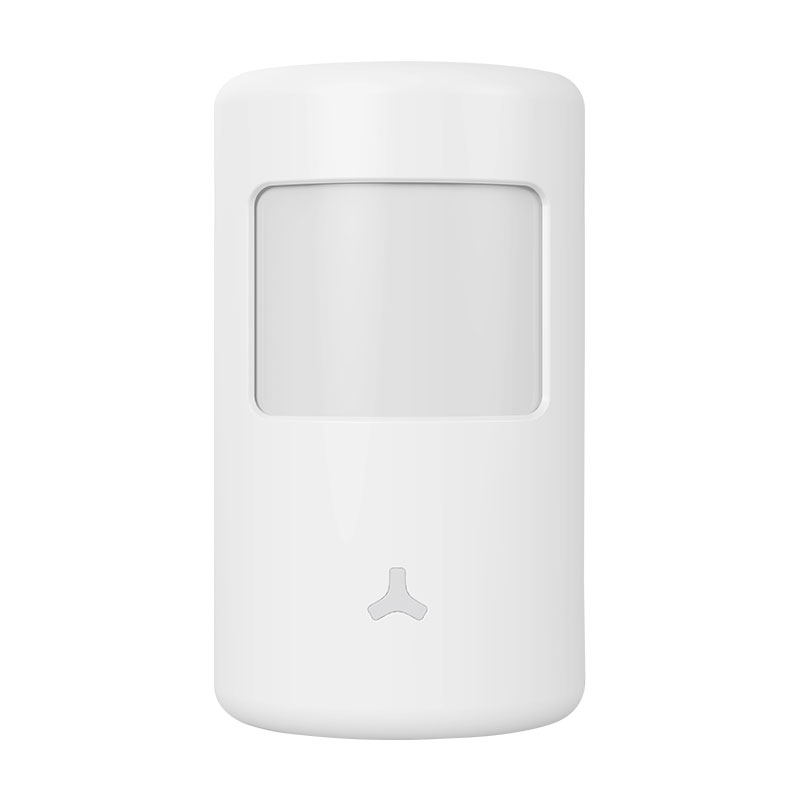

The ALL-PIR2 Wireless Indoor PIR Sensor is an alarm built for indoor environments with a wide angle detection range 7 ~ 8m.
Product Features:
• 7 ~ 8m detection range with 110° field of detection
• Features LED light indicator & buzzer for alarm/battery status
• Tamper switch for vandal protection
• 3VDC power supply, requires 2 x AA 1.5V LR6 batteries
• Monitor and receive alerts to your phone with the Smart Life app
SPECIFICATIONS
General:
Detection Range: 7~8m range / 110° angle
Wireless Transmit Distance: <80m (open area)
Wireless RF Frequency: 433MHz
Environment:
Power Supply: 3VDC (2 x AA 1.5V LR6 batteries)
Standby Current: <20μA
Alarm Current: <30mA
Operating Environment: -10°C~55°C / RH <80%
Dimensions: 90 x 52 x 36.5mm
Warranty (Years): 1
Shipping Weight and Dimensions
Includes product and packages
Width: 40mm
Height: 115mm
Depth: 58mm
Weight: 0.15kg
Additional information
| Manufacturer | |
|---|---|
| Weight | 0.15 |
