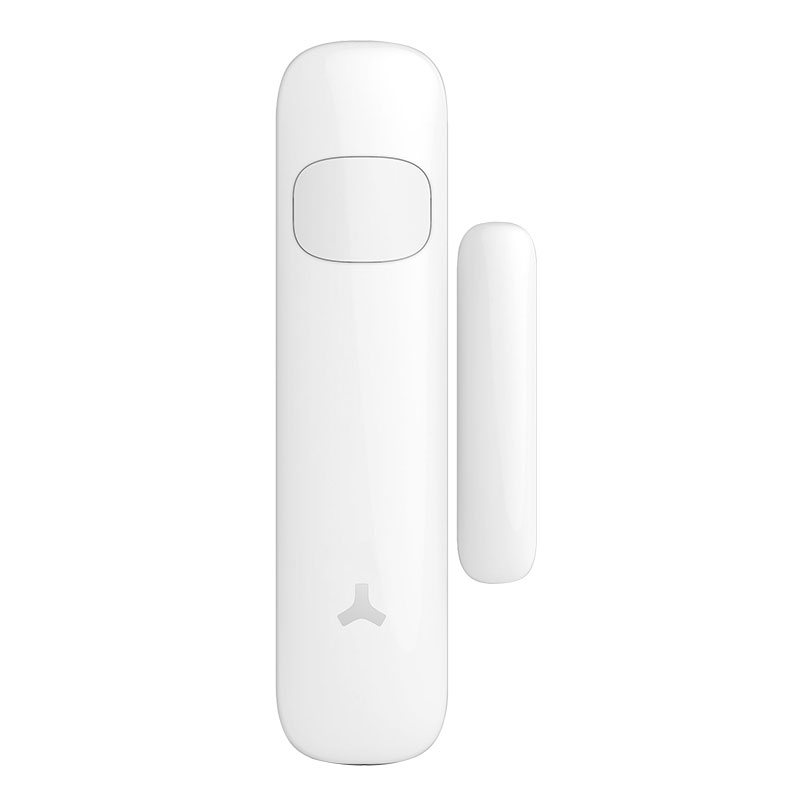

The ALL-PIR1 Wireless PIR Sensor + Reed Switch is an alarm built for indoor environments with a wide angle detection range up to 8m. The ALL-PIR1 combines a PIR motion detector and reed switch, it can detect the opening / closing of windows, doors and human movement.
Product Features:
• Combines PIR sensor and door/window reed switch
• Up to 8m detection range with 90° field of detection
• Features LED light indicator for alarm/battery status
• Tamper switch for vandal protection
• 3VDC power supply, requires 2 x AAAA LR61 batteries
• Up to 12 months of battery life depending on usage
• Monitor and receive alerts to your phone with the Smart Life app
SPECIFICATIONS
General:
Detection Range: 8m range / 90° angle
Wireless Transmit Distance: <80m (open area)
Wireless RF Frequency: 433MHz
Environment:
Power Supply: 3VDC (2 x AAAA LR61 batteries)
Standby Current: <50μA
Alarm Current: <39mA
Operating Environment: -20°C~55°C / RH <80%
Dimensions: 21 x 90 x 18mm (detector) / 10 x 45 x 11mm (magnet)
Warranty (Years): 1
Shipping Weight and Dimensions
Includes product and packages
Width: 25mm
Height: 110mm
Depth: 60mm
Weight: 0.05kg
Additional information
| Manufacturer | |
|---|---|
| Weight | 0.05 |
