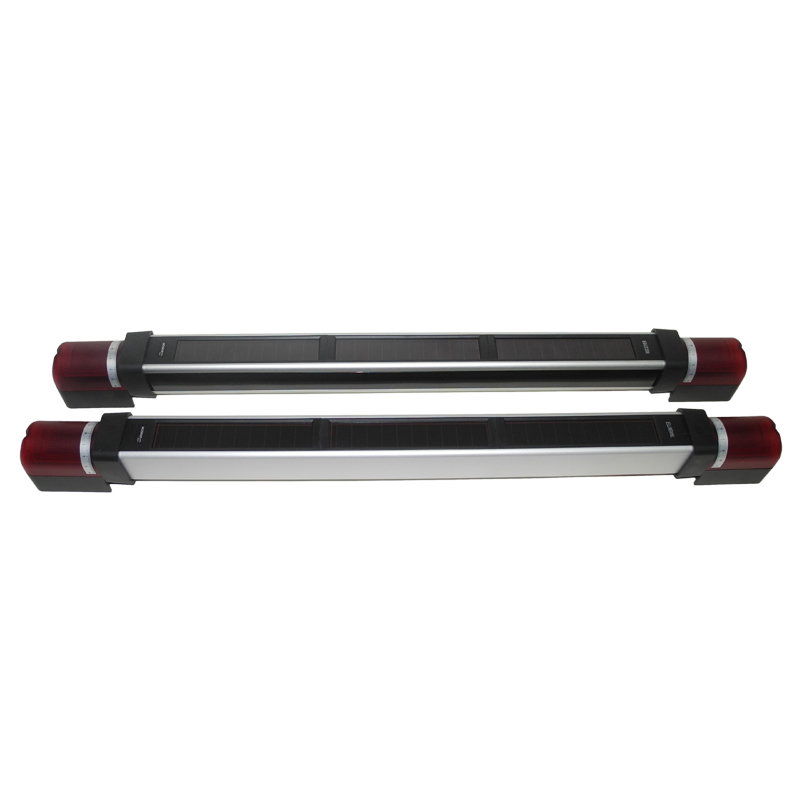

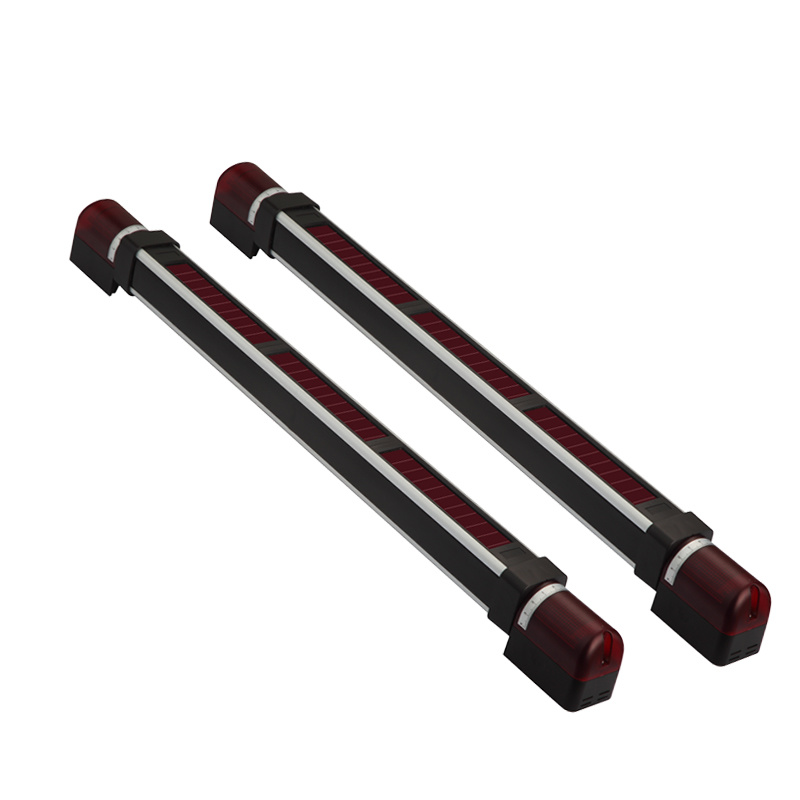

The ALL-BEAM1 Wireless Solar Powered IR Multi-Beam Sensor detects intrusion by creating a curtain of 4 x invisible infrared beams, this sensor is also powered via built-in solar panels. It is ideal for use on fences, balconies, garage doors and more.
Product features:
• Maximum outdoor detection range up to 20m
• Wireless transmission distance to Force alarm panel up to 100m
• Solar powered via built-in solar panels
• LiFepO4 battery
• Compact design, dimensions: 662 x 46 x 60mm
• Monitor and receive alerts to your phone with the Smart Life app
SPECIFICATIONS
General:
No. Infrared Beams: 4 beams
Infrared Light Wave Length: 940mm ± 20mm
Max. Alarm Times: 50 (per 24hrs)
Wireless RF Frequency: 433.92MHz (±75KHz)
Wireless Transmit Distance: <100m (open area) Solar Electric Panel Output: 4-beam grating >1.5mA at 1800lx
Battery Type: LiFepO4 batter
Battery Capacity: Transmitter: 500mAh / Receiver: 1000mAh
Static Current: Transmitter: <0.5mA / Receiver: <0.3mA
Environmental:
Operating Voltage: 3.3V
Operating Environment: -25°C~65°C
Dimensions: 662 x 46 x 60mm
Warranty (Years): 1
Shipping Weight and Dimensions
Includes product and packages
Width: 130mm
Height: 720mm
Depth: 75mm
Weight: 1.60kg
Additional information
| Manufacturer | |
|---|---|
| Weight | 1.6 |
