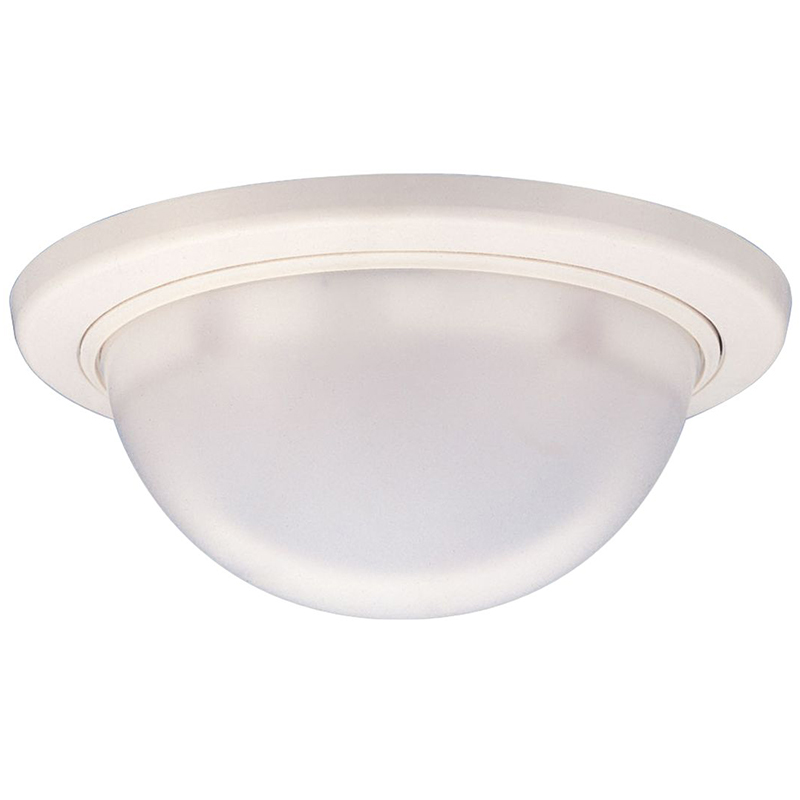

The PIR-T68R PIR Sensor from Takex is built with complete 360° infrared detection up to Ø15m to detect intruders from all directions. Designed to integrate with our range of Watchguard™ Hardwired Alarm Systems. Ideal to be installed in rooms with multiple entrances.
Product Features:

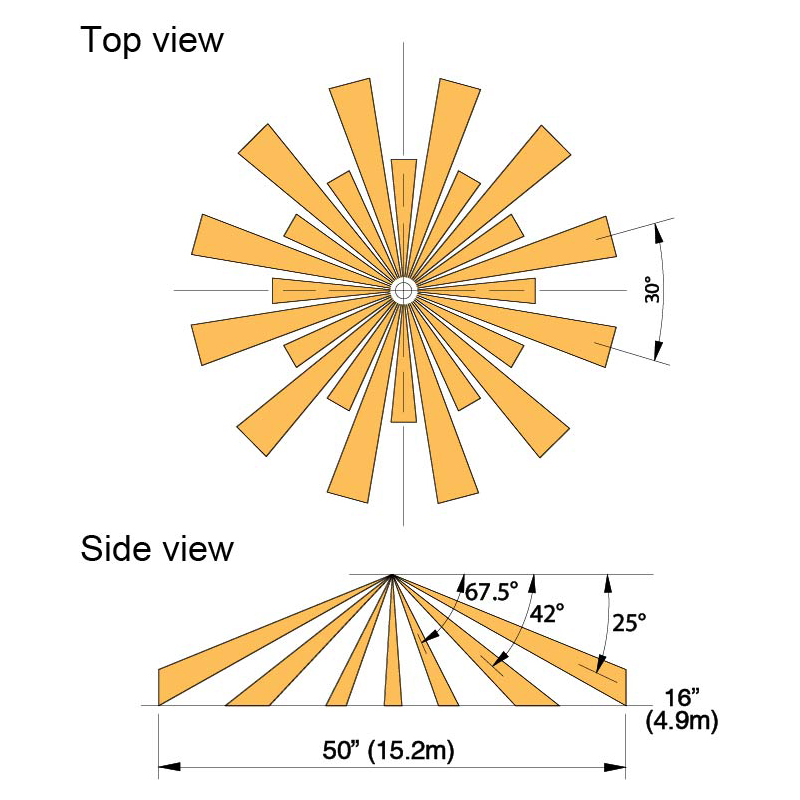

• 360° round passive infrared range up to Ø15m
• Highly adjustable infrared sensitivity - 60% / 80% / 100% / 120%
• High stability against noise and insect intrusion
• Sensitive Zones - 33 pairs
• ABS Plastic housing built for indoor environments
• Super slim and compact design - Ø120 x 47mm
• Input voltage: 10.5 ~28VDC
• Made in Japan
* Maximum mounting height is 4.9m (16')
SPECIFICATIONS
Infrared Type: Passive Infrared
Infrared Detection Range: Transmitting Current
Transmitting Current: Sensitive Zones
Sensitive Zones: 33 pairs
Pet Immunity: No
Alarm Output: Yes
Input Voltage: 10.5~28VDC
Operating Conditions: -15°C ~ +55°C without condensation
Mounting Options: Wall / Ceiling
Housing: ABS Plastic (Body) , PE Plastic (Lens)
Tamper Protection: No
Dimensions: Ø120 x 47mm
Type: Motion Sensor
Warranty (Years): 1
Width: 125 mm
Height: 60 mm
Depth: 125 mm
Weight: 0.11 kg
Additional information
| Manufacturer | |
|---|---|
| Weight | 0.11 |
