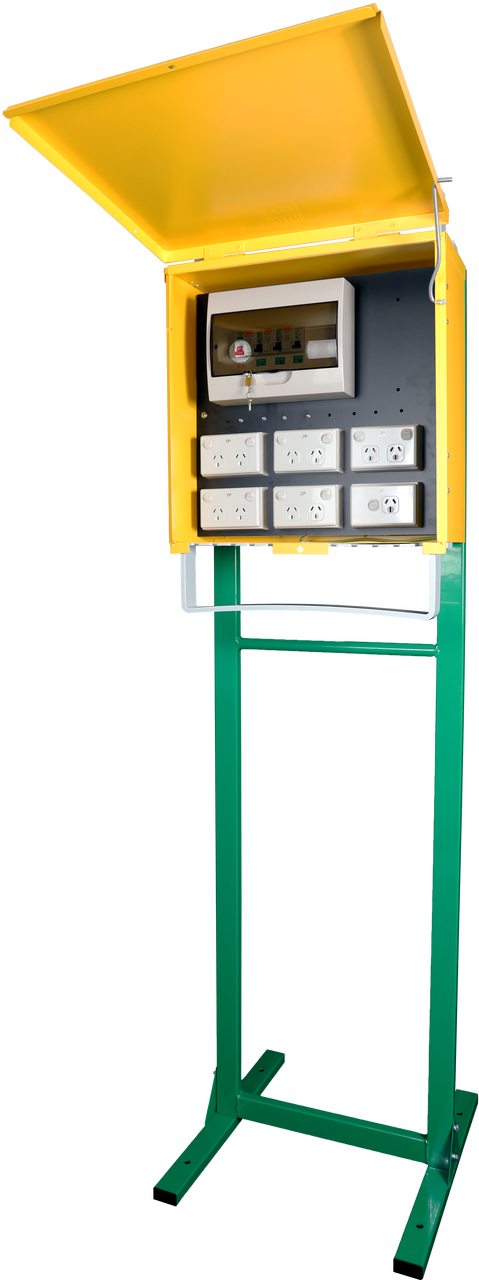

27MBTSG Single Phase Temporary Meter Box
Features:
- Single Phase Temporary Meter Box (Box and Stand)
- Assembled Dimensions: 1875mm x 520mm x 610mm (H x W x D)
- Enclosure Dimensions: 502mm x 505mm x 230mm (H x W x D)
- Construction: 1.2mm Galvanised Steel Sheets AS1397 Standard
- Construction Features: Riveted Hinges and Tabs
- Construction Features: Corrosive Resistant Paint Applied to All Welds
- Construction Features: UV Stabilised Powder Coated Green Stand and Gold Enclosure
- Construction Features: Cable Restraint Isolated Tie Rods (Top & Bottom)
- Door: Removeable. Top Hinged.
- Door Support: Switchable Arm. Left/Right
- IP Rating: IP23 Rated AS1939
- Grounding Point: Earth Stud M5 x 20
- Security: Single Padlock Locking Point (Padlock Not Included)
- Packaging: Protective Cardboard Box
Included Accessories:
- Meter Box and Stand
- Pre-installed Insulating Panel (AS1795/IEC60893)
- 3 Phase, 100 Amp Main Switch
- Provision for 3 Phase Socket Mounted on Main Board
- 5 x 10 Amp Double Power Points with Active and Neutral Switching
- 1 x 15 Amp Power Point
- Lockable Loom Box (Lock Included)
Notes:
- Fully Wired and Tested in Australia by Licensed Electricians with Locally Sourced SAA Approved Parts
Packaging:
- 2 Piece Kit. Each in a Protrective Cardboard Box
Additional information
| For Bulk Orders Please Call: | |
|---|---|
| Brand | |
| Type | |
| Supplier | Bitek |
