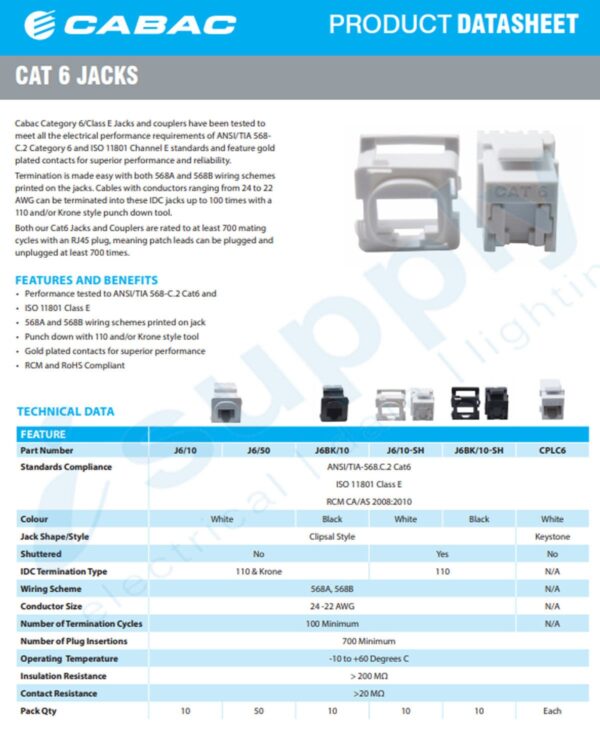

Cabac Category 6/Class E Jacks and couplers have been tested to meet all the electrical performance requirements of ANSI/TIA 568- C.2 Category 6 and ISO 11801 Channel E standards and feature gold plated contacts for superior performance and reliability. Termination is made easy with both 568A and 568B wiring schemes printed on the jacks. Cables with conductors ranging from 24 to 22 AWG can be terminated into these IDC jacks up to 100 times with a 110 and/or Krone style punch down tool. Both our Cat6 Jacks and Couplers are rated to at least 700 mating cycles with an RJ45 plug, meaning patch leads can be plugged and unplugged at least 700 times.
FEATURES AND BENEFITS
Performance tested to ANSI/TIA 568-C.2 Cat6 and
ISO 11801 Class E 568A and 568B wiring schemes printed on jack Punch down with 110 and/or Krone style tool Gold plated contacts for superior performance RCM and RoHS Compliant
Additional information
| Material Group | PG |
|---|---|
| EAN | |
| Brand | |
| For Bulk Orders Please Call: | |
| Type | |
| Supplier | Cabac |
