CLIPSAL Compatible CABAC CONTINUOUS MOTION DETECTOR 3 WIRE 230V HNS060MD

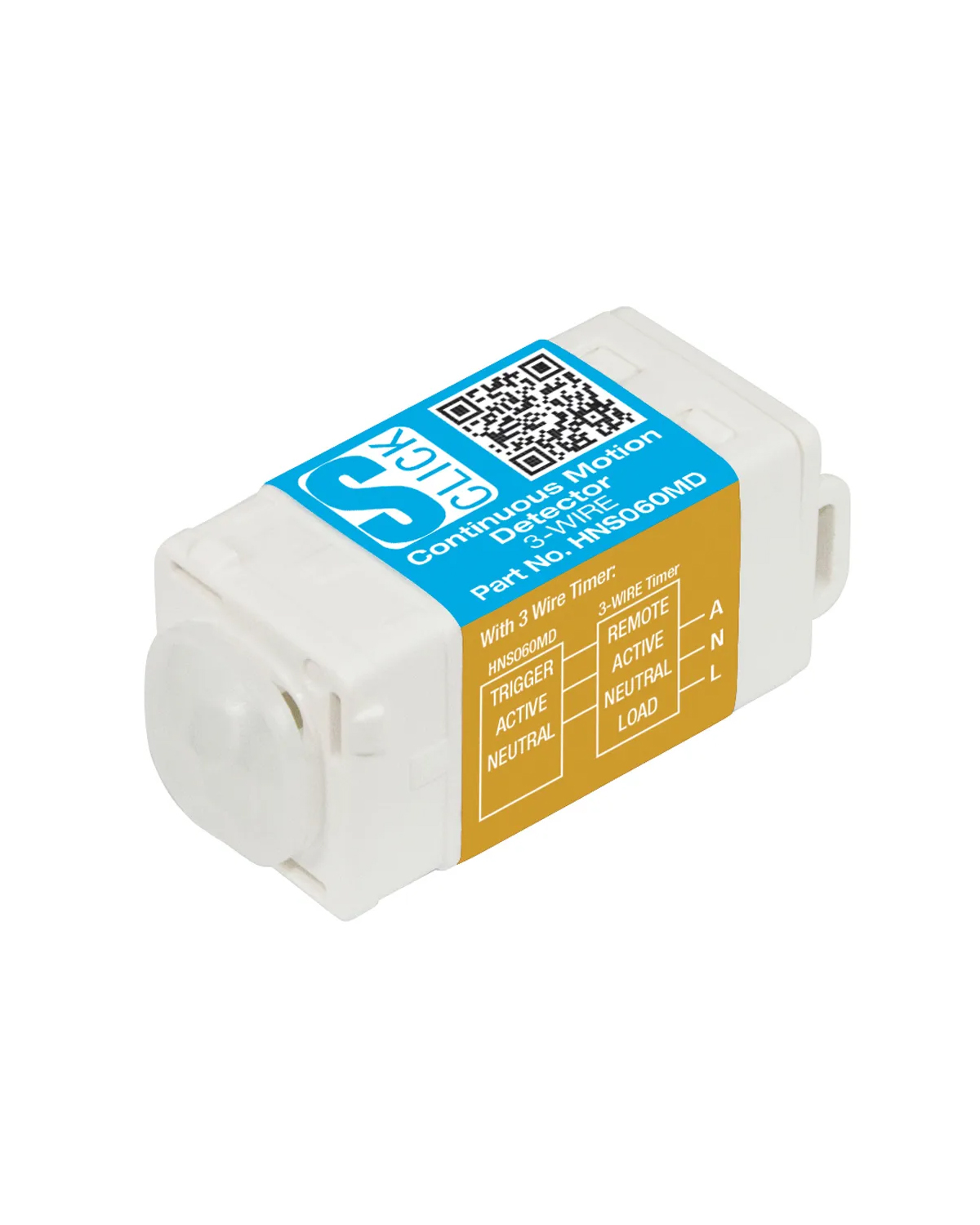

S-Click™ Continuous Motion Detector 3-Wire 230V

Australia’s first Mech based PIR sensor that fits all popular wallplates.

The HNS050MD is a light sensitive movement detector while the HNS060MD senses movement only.

Features and Benefits

• Senses movement and light to trigger S-Click timer switches

• Automatically turn on power when movement in a 2m radius is detected

• Save power by turning power ON when movement is detected and OFF after a predetermined time

• Two detector versions for slightly different applications

• Fits in standard HPM and Clipsal face plates (lenses included)

• Certified to Australian and New Zealand standards AS/NZS 3100 & CISPR 15

• Designed, engineered and manufactured in Australia

• Must be used with S-Click timer switches

• Timer switch still works

Note: 3-Wire must use neutral.

HNS060MD Features

• PIR detector

• Keeps triggering S-Click timer switch every time movement is detected within 2m (red LED flashes) regardless of light level

• Use for bathrooms and laundries

• MUST be used with S-Click 3-Wire timer switch HNS440TM or HNS450TM

HNS050MD Features

• Light sensitive PIR detector

• Only Triggers if it is dark (less than 20 lux)

• Triggers when movement is detected within 2m (red LED Flashes)

• Use for work spaces and meeting rooms

• MUST be used with S-Click 2-Wire and S-Click 3-Wire timers switches HNS410TM, HNS420TM, HNS440TM or HNS450TM

Ordering Information

Part No. Description HNS050MD Light Sensitive Motion Detector 3-Wire HNS060MD Continuous Motion Detector 3-Wire 230V
