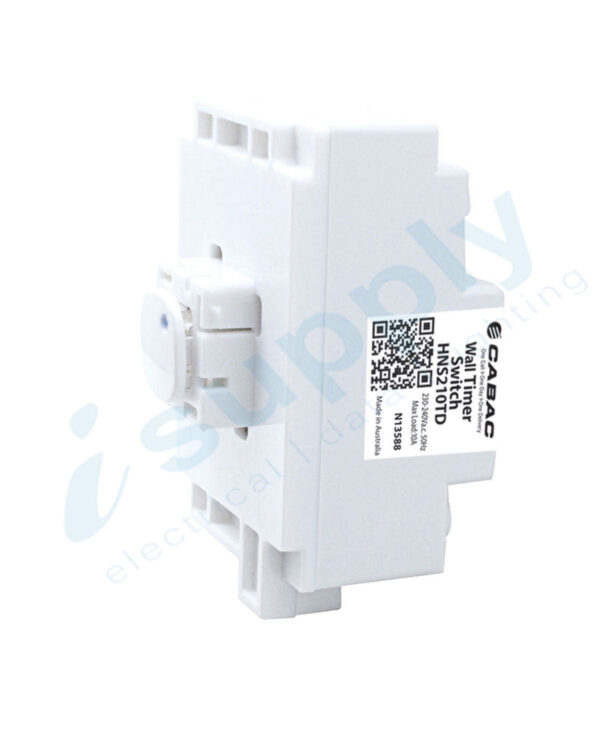

S-Click™ Advanced Wall Timer Switch 230VAC 10A
The HNS220TD Advanced Wall Timer is a timer switch that can be used in two RELEASE modes, as a timer switch and as a restart timer switch. The HNS220TD Advanced Wall Timer is specifically designed for high power applications like motors, fans and pumps for pools and spas.
The HNS220TD can be used as a direct replacement for the Clipsal 2031VETR3 and the 31VETR3 – except that it can switch 8A of motor load and can also operate as a rest timer.
Advanced Wall Timer Switch Features
• Supports Timer and Reset Timer modes of power switching operations
• Single tap to turn power off in Timer mode operation
• Single tap to reset timer in Reset Timer mode
• In Reset Timer mode – single tap to reset timer
• Wall Timer powers the device for a selected amount of time
• Blue LED indicates device status – LED on indicates device on
• Fits in a one gang Australian face plate style switch mechanism
• Easy time-out period programming
• 8A of Motor Load
• Programmable Normally Open or Normally Closed
• Designed for high power applications
• Compatible with Clipsal or HPM wall plates
• Supplied with choice of buttons and face plate
• Perfect for retrofitting existing installations
• Program time to 15 hours
• Improved direct replacement for the Clipsal 2031VETR3 and the 31VETR3
• Designed, engineered and manufactured in Australia
Important Safety Warnings
LOAD REPLACEMENT
It should be assumed that even when OFF, mains voltage will still be present at the load fitting. Mains power must be disconnected at the circuit breaker before replacing faulty loads.
INSTALLATION
The HNS220TD is to be installed as part of a fixed wire electrical installation. By law, such installations must be made by an electrical contractor or similary qualified person. Mains power must be disconnected at circuit breaker before installation of the wall timer. Avoid excessive force during installation.
The recommended stripped wire length for wires used in the installation of the HNS220TD is 10mm.
CLEANING
Clean only with damp cloth. Do not use abrasives or chemicals.
Technical Data
See manual under Technical Data
Load Compatibility
Type Yes/No Incandescent Yes 240V Halogen Yes Fluorescent Tube with electronic ballast Yes Fluorescent Tube with iron core ballast Yes Electronic transformer Yes Compact Fluorescent Yes Electronic Transformer Yes LED Yes Wirewound Transformer Yes Fan Motors Yes Heating Elements Yes
Ordering Information
Part No. HNS220TD

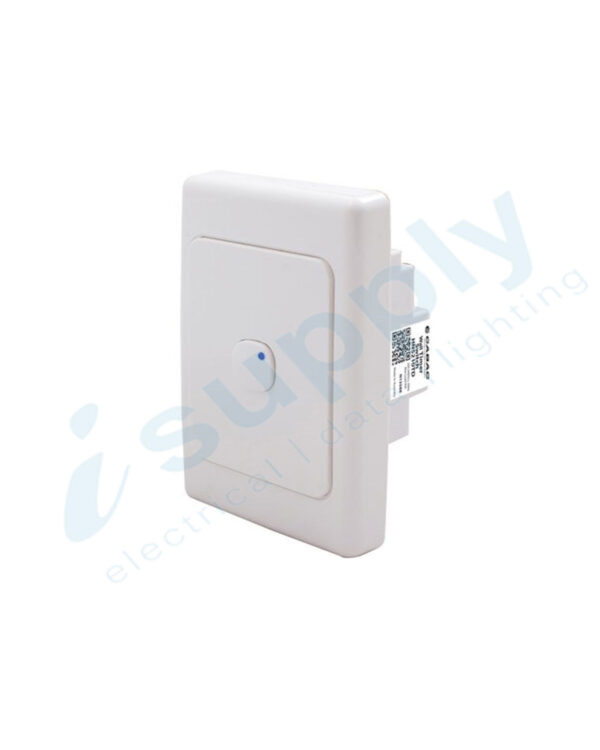

The Wall Timer Switch is supplied with:
• 1x Wall plate
• 1x HPM style push button
• 1x Clipsal style push button
• 1x Instruction manual
Additional information
| Material Group | OA |
|---|---|
| EAN | |
| Brand | |
| For Bulk Orders Please Call: | |
| Type | |
| Supplier | Cabac |
