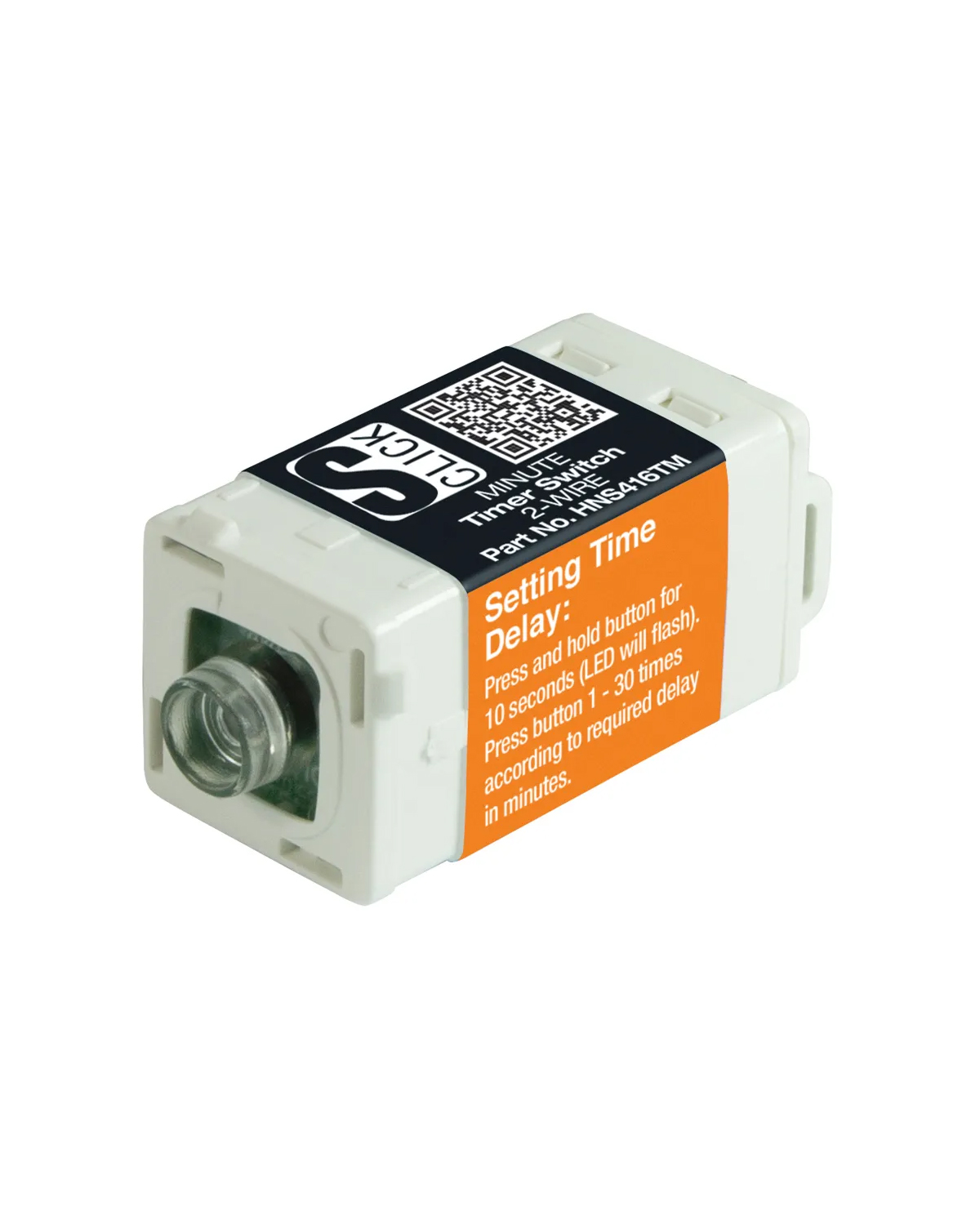

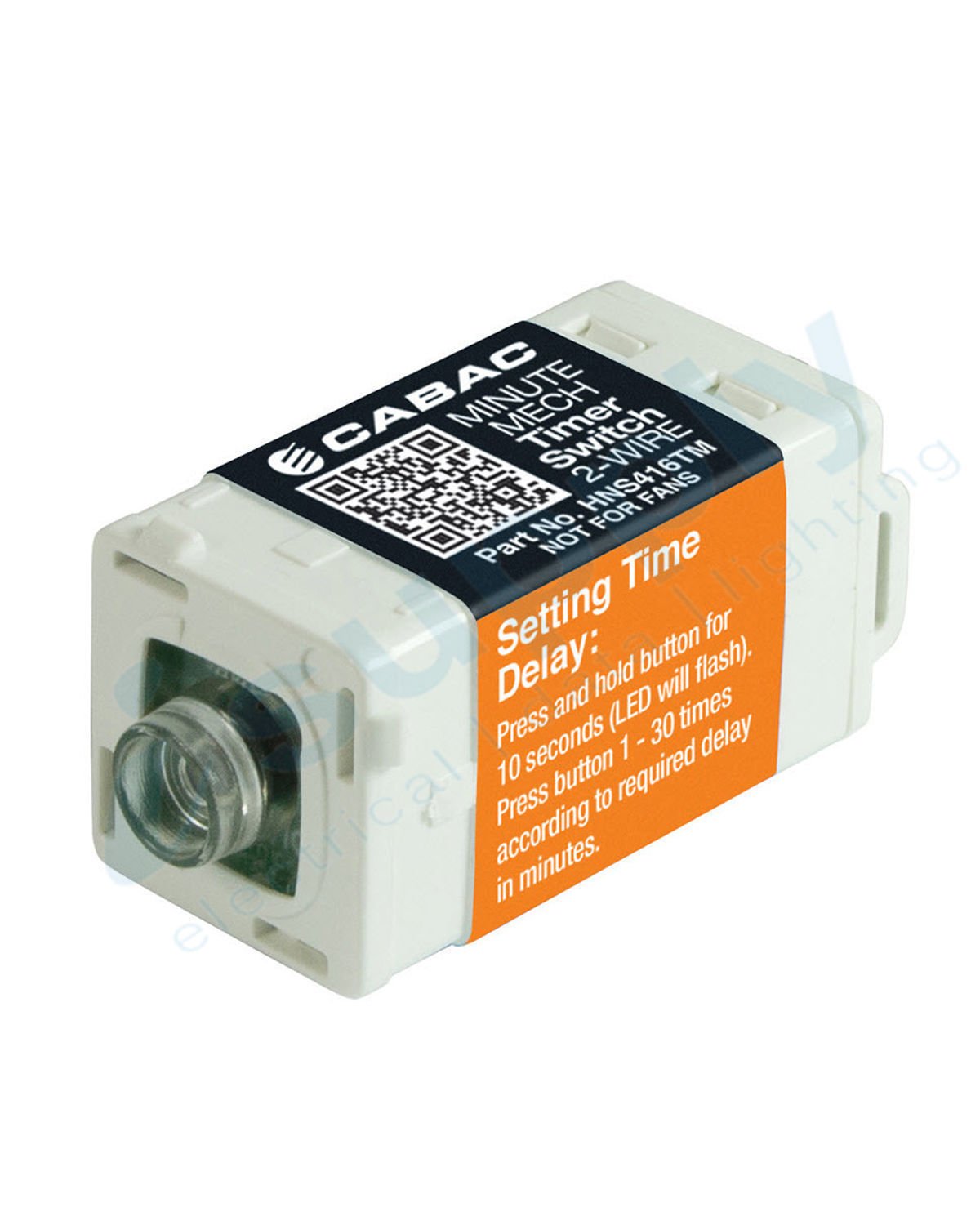

CLIPSAL Compatible Cabac S-Click Minute Timer S-Premium 2-Wire (Clipsal Saturn) HNS416TM

Minute Timer S-Premium™ 2-Wire (Clipsal Saturn Compatible)

This Minute Mech Timer Switch 2-Wire is suitable for use with the Clipsal Saturn™ style wall plates.

Easy to use and set:

• Tap on Tap off

• Set as a timer switch up to 30 minutes

• Push button for 2 seconds to use as normal on/off switch to keep light on (past timeout) then tap off anytime

Applications

Walk-in wardrobes, cellars, toilets/bathrooms, garages, hallways, kitchen pantry and where kids or the public frequent areas, when there is a good chance that lights will be left on.

Minute Mech Timer Switch Features

• Suits Clipsal Saturn™ style wall plates

• Supports timer and un-timed ON modes of operation

• Blue LED indicates device status

• User programmable time-out period

• Programmable in 1 minute increments from 1 to 30 minutes

• When ON – quick tap turns power OFF

• Quick LED indicator flashing within 10 seconds of time out provides expiry warning

• Retains setting even after loss of power

• Remote switch compatible

• Time set to 30 minutes out of the box

• Dimensions: 51mm in length (including button)

IMPORTANT: The Single Mech Timer Switch is NOT to be used with fans. It is to be installed as part of a fixed wire electrical installation. By law such installations must be made by an electrical contractor or similarly qualified person.

Technical Data

See manual under Technical Data

Load Compatibility

Type Yes/No Incandescent / 240V Halogen Yes Fluorescent Tube with Electronic Ballast Yes Compact Fluorescent Lamps Yes* Electronic Transformer Yes LED Yes* Wirewound Transformer No Fan Motors No Fluorescent Tube with Iron Core Ballast No

* Subject to manufacturer’s recommendations, lamps suitable for electronic switches only.

Ordering Information
Part No. HNS416TM
