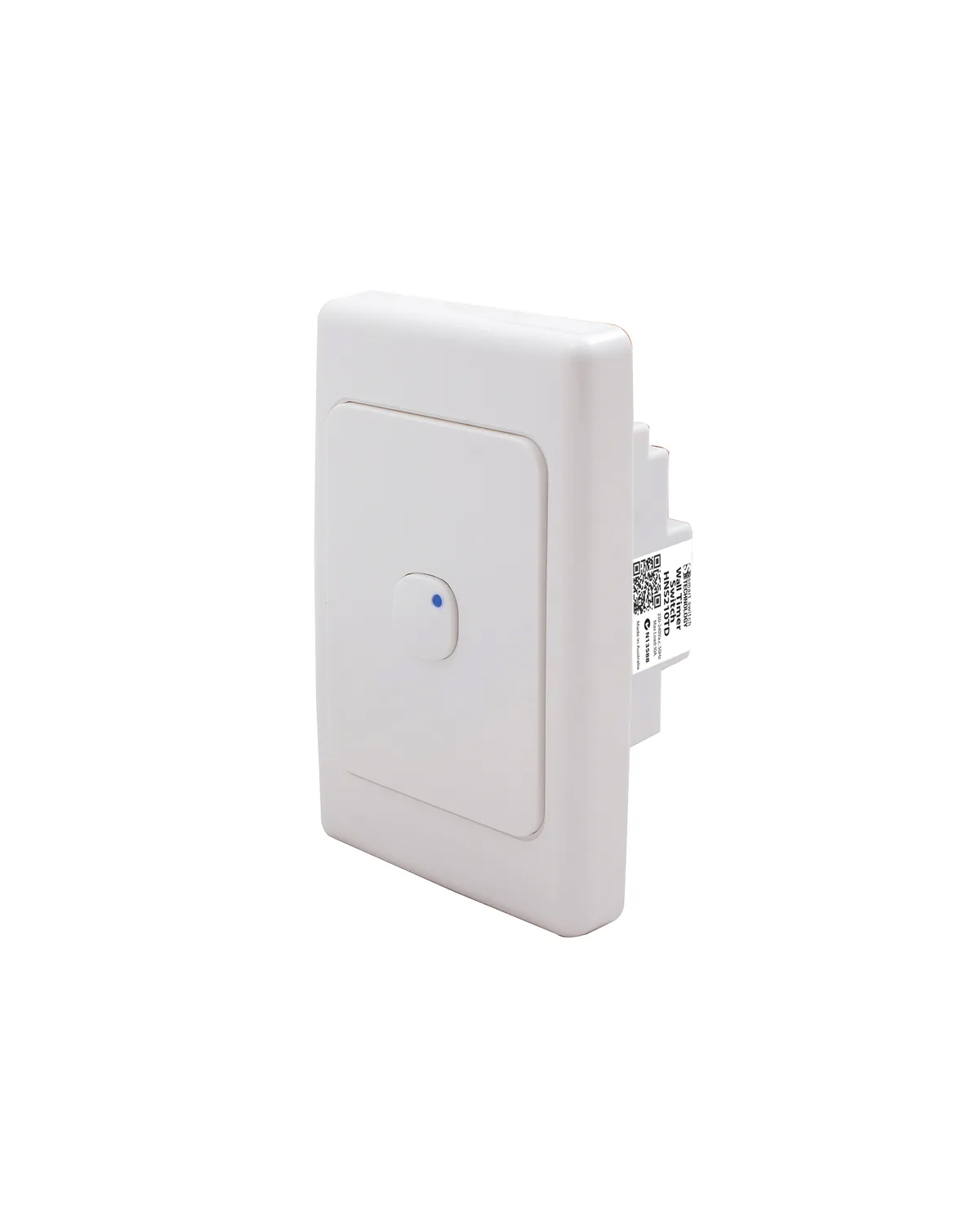

S-Click™ Wall Timer Switch 230VAC 10A
The new S-Click Wall Timer Switch is a unique 2 in 1 energy-saving light switch that can be easily retrofitted to most installed lights. Use as a simple on/off switch or set as a timer switch. With a simple tap on the switch, you can program to turn any light off when you want it to, saving you energy, money and inconvenience.
Easy To use and set:
• Tap on Tap off or Tap on Tap reset
• Set as timer switch up to 4 hours
Applications
Walk-in wardrobes, cellars, toilets/bathrooms, garages, hallways, kitchen pantry and where kids or the public frequent areas, when there is a good chance that lights will be left on.
Wall Timer Switch Features
• Push button timer with on/off and on/restart operation options
• Easy DIP switch time delay settings
• Run time selection from 15 seconds to 252 minutes
• May also be controlled from a simple remote momentary-action switch
• Back module compatible with popular Australian (Clipsal & HPM) style one gang wall plate
• Both Clipsal & HPM style push buttons are provided for a perfect fit
Dimensions: 46mm in length (including button)
Setting Auto Off Timer
• Factory default setting 32 minutes – use straight out of the box
• To program set dip switches on back of unit (up to 4 hours)
• Switch is now set for use
IMPORTANT: The Wall Timer Switch is to be installed as part of a fixed wire electrical installation. By law such installations must be made by an electrical contractor or similarly qualified person.
Electrical Safety Warning: Isolate the HNS210TD from the mains power supply before setting the timer.
Technical Data
See manual under Technical Data
Load Compatibility
Type Yes/No Incandescent Yes 240V Halogen Yes Fluorescent Tube with electronic ballast Yes Fluorescent Tube with iron core ballast Yes Electronic transformer Yes Compact Fluorescent Yes Electronic Transformer Yes LED Yes Wirewound Transformer Yes Fan Motors Yes Heating Elements Yes
Ordering Information
Part No. HNS210TD
The Wall Timer Switch is supplied with:
• 1x Wall plate
• 1x HPM style push button
• 1x Clipsal style push button
• 1x Instruction manual
Additional information
| Material Group | OA |
|---|---|
| EAN | |
| Brand | |
| For Bulk Orders Please Call: | |
| Type | |
| Supplier | Cabac |
