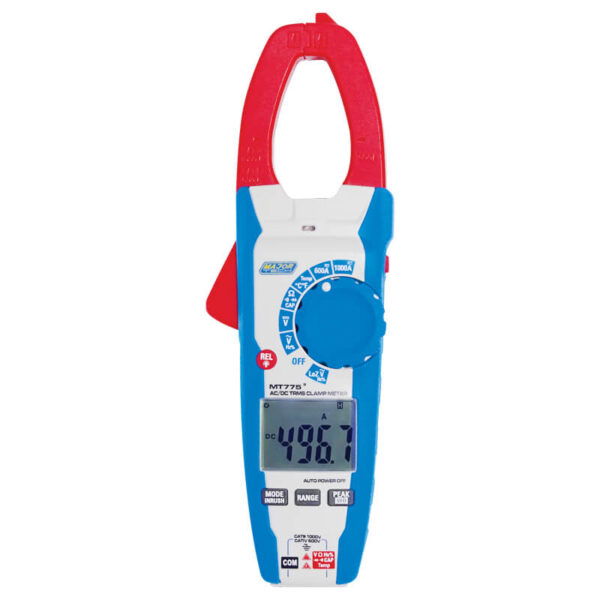

The MT775 is a CAT IV 600V, 6000 count True RMS 1000A AC/DC digital clamp meter with indication on a large backlit LCD display, providing fast sampling time with high accuracy. The meter measures 1000V AC/DC, temperature, frequency, capacitance and resistance measurements, plus 100ms Inrush current and Peak Voltage value. The VFD function allows the user to measure stable voltage in high frequency applications of Variable Frequency Drives, while the Low Z range function has a low pass filter to eliminate errors caused by “Ghost” voltages. Added features include Relative mode for DCA and Capacitance Zero and offset adjustment, Non-Contact voltage detection, Data hold function and a built-in flashlight for dimly lit areas. Housed in a modern double moulded rubber housing.
CAT IV 600V and CAT III 1000V
6000 count backlit LCD display
Ø33mm Cable Clamp size
Measurement of DC voltage and AC voltage up to 1000V
Capacitance to 100mF
Temperature measurement from -20⁰C to 1000⁰C
INRUSH Current Measurements
VFD – Variable Frequency Drive voltage value
LoZ – Low impedance mode prevents false readings due to “Ghost” voltage
NCV – Non-Contact Voltage Detector
Built-In Flashlight
Continuity buzzer and Diode Test
Peak Mode and Data Hold function
Auto Power Off
SPECIFICATIONS
*Function: DC Current Range: 600.00A – 1000.0A Resolution: 10mA Accuracy: ±(2.5% + 5 Digits)
*Function: AC Current Range: 600.00A – 1000.0A Resolution: 10mA Accuracy: ±(2.5% + 8 Digits)
*Function: DC Voltage Range: 6.000V – 1000V Resolution: 1mV Accuracy: ±(1.5% + 2 Digits)
*Function: AC Voltage Range: 6.000V – 1000V Resolution: 1mV Accuracy: ±(1.5% + 5 Digits)
*Function: Resistance Range: 600.0Ω – 60.00MΩ Resolution: 0.1Ω Accuracy: ±(1.5% + 2 Digits)
*Function: Frequency Range: 9.999Hz – 99.99kHz Resolution: 0.01Hz Accuracy: ±(1.2% + 5 Digits)
*Function: Capacitance Range: 60.00nF – 100.0mF Resolution: 0.01nF Accuracy: ±(3.0% + 5 Digits)
*Function: Temperature Range: -20 to 1000°C Resolution: 0.1°C Accuracy: ±(5.0% + 3°C Digits)
*Function: Duty Cycle Range: 10.0% to 90.0% Resolution: 0.001 Accuracy: ±(1.2% + 10 Digits)
*Function: True RMS Measurements Range: ACV, ACA
*Function: AC Bandwidth Range: 50 – 400Hz
*Function: Digital Display Range: 6000
*Function: Non-Contact Voltage (NCV) Range: Yes
*Function: Overrange Indication Range: Yes
*Function: Continuity Range: Yes
*Function: Diode Test Range: Yes
*Function: Jaw Size Range: 33mm
*Function: Input Impedance Range: >10MΩ DCV & >10MΩ VAC
*Function: Low Frequency Input Range: Yes
*Function: Min Max Range: Yes
*Function: Peak Hold Range: Yes
*Function: Data Hold Range: Yes
*Function: Back Light Range: Yes
*Function: Enclosure Range: Double injection moulding
*Function: Low Battery Indication Range: Yes
*Function: Batteries Range: 3 x AAA
*Function: Weight Range: 350g
*Function: Dimensions Range: 250 x 78 x 40mm
*Function: Safety Specs Range: IEC61010-1 CAT IV 600V
Accessories
Test Leads
Type-K Wire Probe
Type-K Adaptor
Carrying Case
3 x AAA Batteries
Instruction Manual
