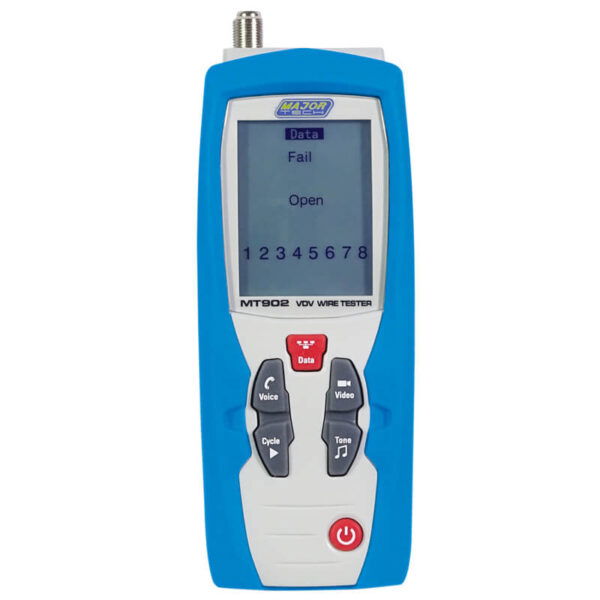

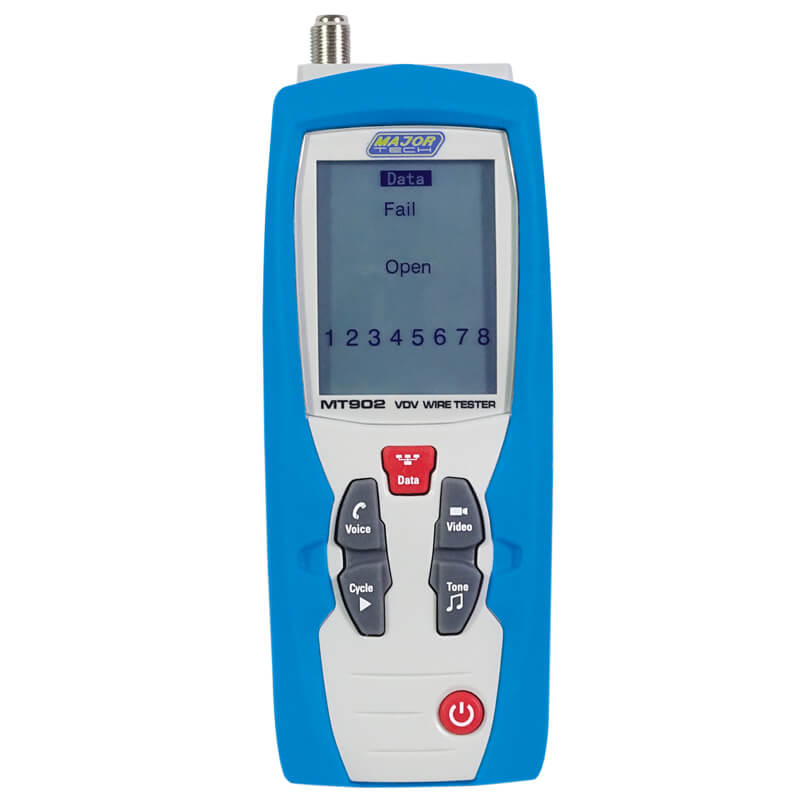

The MT902 is a professional VDV Wire Tester that analyses patch leads on phones, computer networks and coax cables in one easy step. This portable Voice, Data and Video meter is used to verify and troubleshoot RJ11, RJ12, RJ45 and F-connector cable. Indication on the large LCD display will map out and indicate open faults, short faults, split pairs and reverse wiring together with icons of PASS and FAIL status. The MT902 comes standard with 5 RJ45 Data and 5 Coax F-Connector identification remotes that can be used by technicians to permit mapping as well as identify cable runs from patch panels to a wall outlet ports. The built-in tone generator can be used to locate cables in wiring closets and patch panels by using an optional amplifier probe. Housed in a rugged double moulded case will provide years of reliable service.
Analysing of Voice, Data and Video cables
Tests shielded twisted pair (STP), unshielded twisted pair (UTP) and coaxial cables.
Detects shorts, opens, reversed polarity, crossed and split pairs
5 Data RJ45 Remote Identifiers, 5 Coax F-Connector Remote Identifiers
Generates three distinct, selectable digital tone patterns for cable tracing and trouble shooting
Flashing Voltage warning alerts user of unidentified hazardous voltage
Simple cable identification of patch panel or wall outlet port
Low Battery indication and Auto Power Off
PASS or FAIL indication of correct or error in wiring
Large LCD backlit display
SPECIFICATIONS
*Function: Cable Types Range: Shielded or Unshielded Cat7, Cat7A, Cat6, Cat6A, Cat5, CAT5A, Cat4Cat3, coax
*Function: Voice Tests Range: RJ-11/12 6-wire cables
*Function: Data Tests Range: RJ-45 8-wire cables
*Function: RJ-45 Remote Range: 5 Remote mapping locations
*Function: Video Tests Range: F-connector coax cables
*Function: Tone Range: Use of Tone generator to trace phone lines
*Function: Digital Display Range: 2.4-inch TFT colour screen
*Function: Maximum Coax Cable Length Range: 305m
*Function: Minimum for Split Pair Detection Range: 0.5m
*Function: Maximum Coax Cable Resistance Range: 100??s maximum DC
*Function: Max Voltage between any Two pins no damage Range: 60V DC or 55V AC
*Function: Back Light Range: Yes
*Function: Enclosure Range: Moulded casing
*Function: Low Battery Indication Range: Yes
*Function: Batteries Range: 2 x AA
*Function: Weight Range: 230g
*Function: Dimensions Range: 152 x 61 x 34mm
*Function: Safety Specs Range: EN 61326
Accessories
RJ45 Remote ID?s
F-Connector Remote ID?s
Voice & Data Jack Adaptor
Data Patch Cable
Coax Patch Cable
Telephone Patch Cable
Additional information
| For Bulk Orders Please Call: | |
|---|---|
| Brand | |
| Type | |
| Supplier | Major Tech |
