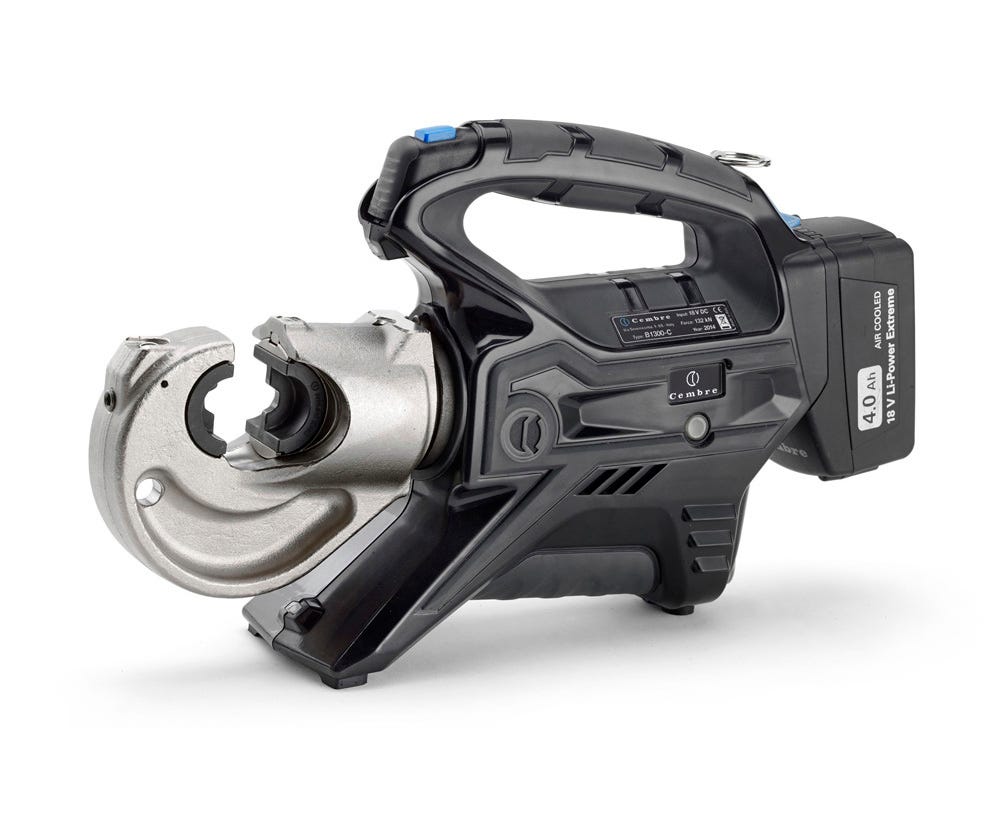

18V battery powered hydraulic 13 tonne crimping tool, allows for more crimps per charge at a quicker pace
Balanced, low noise and vibration for better operator comfort
LCD condition display monitors the crimp pressure
Data logging of crimping cycles
Copper dies available up to 400 sq.mm
Product Description
The B1300-CT is suitable for a wide range of connectors up to 400mm2 using all semi-circular slotted dies common to Cembre 130 kN tools.
New Li-Ion 18V 4 Ah batteries offer a higher capacity than 14.4V 3 Ah, while greater crimping speed and crimping force result from a revitalised hydraulic system with double speed action: a more rapid approach of the dies to the connector then a more
controlled, powerful speed for crimping.
The crimping head can rotate through 180 degrees for ease of operation while a large 25mm jaw allows easier introduction/removal of compression terminations and joints.
A maximum pressure sensor and security valve together assure greater precision and repeatability of the pressure cycle and double the provision for operator safety.
13T Battery Hydraulic Crimper Features
- Greater crimping speed and force
- Maximum pressure sensor and security valve for greater precision and operator safety
- Bi-component plastic shell provides high resistance to wear and damage
- Rubber grip
- Low noise and minimal vibration for operator comfort
- LED lighting area for additional convenience and safety
- Crimping cycle data (up to 200,000 events) stored on memory card for transfer to PC by USB interface
Li-Ion Battery Features
- Provides 100% of its energy between -15 deg C and 50 deg C
- Electronic control of single cells to avoid overcharging and undercharging
- Air-cooled charging technology to increase battery life
- Quickest charging time
- Auto-off to optimise energy consumption
Technical Data
Crimping Force: 132kN
Dimensions:
Length: 406mm
Height: 239mm
Width: 102.5mm
Battery: Li-Ion 18V 4.0 Ah
Weight (with battery): 6.5kg
The B1300-CT is supplied with:
- Battery and shoulder strap
- Spare battery
- Battery charger
- Plastic carrying case suitable for storing the tool and die sets
OLED Display
The OLED display provides essential real time tool operating information data including:
- Minimum set force and momentary force reached expressed in kN (confirms correct operation
- Minimum set force and momentary force reached expressed in US Ton (confirms correct operation)
- Minimum set pressure and momentary pressure reached expressed in bar (confirm correct operation)
- Minimum set pressure and momentary pressure reached expressed in Psi (confirm correct operation)
- Battery charge level
- No. of cycles performed and No. of cycles recommended before scheduled maintenance
- Cembre logo, tool model and tool serial No.
- LED Worklights (On and Off)
- Return to factory settings/firmware version
