18V battery powered hydraulic 13 tonne crimping tool, allows for more crimps per charge at a quicker pace
Balanced, low noise and vibration for better operator comfort
LCD condition display monitors the crimp pressure
Data logging of crimping cycles
Copper dies available up to 400 sq.mm
Product Description

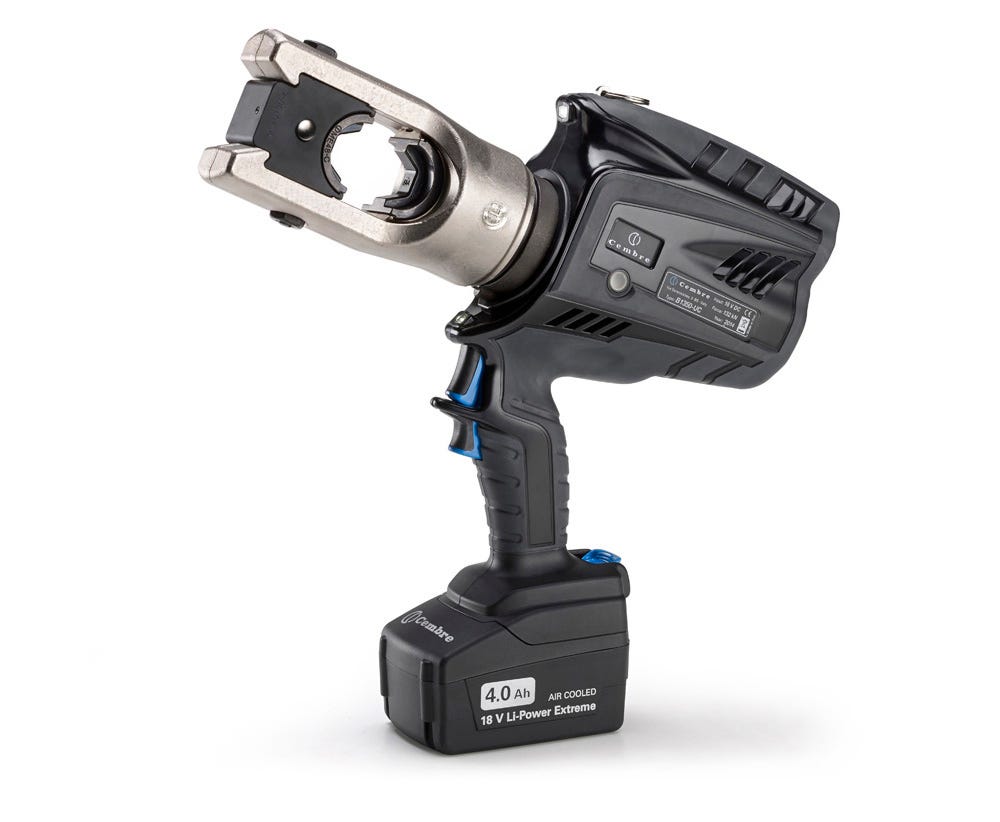

The B1350-UCT is the 'U Head' tool of the next generation of cordless hydraulic tools, heralding a significantly advantageous evolution from current models.
The 130kN B1350-UCT is suitable for a wide range of connectors up to 400mm2 for performing the 'Deep Stepped Indent' system of crimping on Aluminium and Copper conductor, using all semi-circular slotted dies common to
Cembre 130 kN tools (U Dies). The crimping head can rotate through 180 degrees for ease of operation.
New Li-Ion 18V 4 Ah batteries offer a higher capacity than 14.4V 3 Ah, while greater crimping speed and crimping force result from a revitalised hydraulic system with double speed action: a more rapid approach of dies to the
connector then a more controlled, powerful speed for crimping. A maximum pressure sensor and security valve together assure greater precision and repeatability of the pressure cycle and double the provision for operator safety.
13T Battery Hydraulic Crimper Features
- Greater crimping speed and force
- Maximum pressure sensor and security valve for greater precision and operator safety
- Bi-component plastic shell provides high resistance to wear and damage
- Rubber grip
- Low noise and minimal vibration for operator comfort
- LED lighting area for additional convenience and safety
- Crimping cycle data (up to 200,000 events) stored on memory card for transfer to PC by USB interface
Li-Ion Battery Features
- Provides 100% of its energy between -15 deg C and 50 deg C
- Electronic control of single cells to avoid overcharging and undercharging
- Air-cooled charging technology to increase battery life
- Quickest charging time
- Auto-off to optimise energy consumption
Technical Data
Crimping Force: 132kN
Dimensions:
Length: 351mm
Height: 369mm
Width: 83mm
Battery: Li-Ion 18V 4.0 Ah
Weight (with battery): 5.9kg
The B1350-UCT is supplied with:
- Battery and shoulder strap
- Spare battery
- Battery charger
- Plastic carrying case suitable for storing the tool and seven die sets
OLED Display
The OLED display provides essential real time tool operating information data including:
