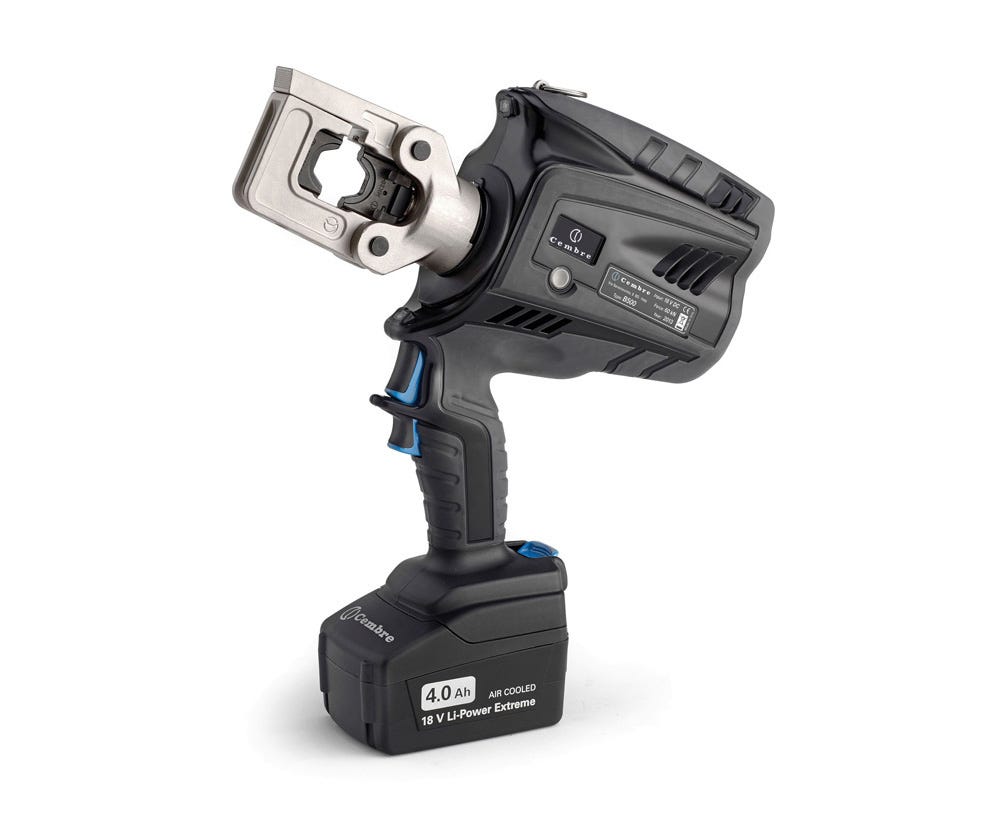

18V battery powered 5 tonne, hydraulic crimping tool giving greater crimping speed and more operations
Improved handling balance with low noise and vibration
Dies available for Copper lugs from 6 to 185 sq.mm
LCD condition indication displays crimping pressure
Data storage logging of crimping operations
Product Description
Born of the renowned B51 type crimping tool, first into the market is the 60kN B500, suitable for a wide range of connectors up to 240mm2 using die sets common to the Cembre 50kN tooling range.
New Li-Ion 18 V 4 Ah (type CB1840L) batteries offer a higher capacity than 14.4 V 3 Ah, while greater crimping speed and crimping force result from a revitalised hydraulic system with double speed action: a more rapid approach
of the dies to the connector then a more controlled, powerful speed for crimping. A maximum pressure sensor and security valve together assure greater precision and repeatability of the pressure cycle and double the provision for
operator safety.
5T Battery Hydraulic Crimper Features
- Greater crimping speed and force
- Maximum pressure sensor and security valve for greater precision and operator safety
- Improved handling balance
- Bi-component plastic shell provides high resistance to wear and damage
- Rubber grip
- Low noise and minimal vibration for operator comfort
- LED lighting area for additional convenience and safety
- Crimping cycle data (up to 200,000 events) stored on memory card for transfer to PC by USB interface.
Technical Data
Crimping Force: 60kN
Dimensions:
Length: 287mm
Height: 343mm
Width: 83mm
Battery: Li-Ion 18V 4.0 Ah
Weight (with battery): 4.2kg
OLED Display
The OLED display provides essential real time tool operating information data including:
- Minimum set force and momentary force reached expressed in kN (confirms correct operation
- Minimum set force and momentary force reached expressed in Tons (confirms correct operation)
- Minimum set pressure and momentary pressure reached expressed in bar (confirm correct operation)
- Minimum set pressure and momentary pressure reached expressed in Psi (confirm correct operation)
- Battery charge level
- No. of cycles performed and No. of cycles recommended before scheduled maintenance
- Cembre logo, tool model and tool serial No.
- LED Worklights (On and Off)
- Return to factory settings/firmware version
Additional information
