13T Battery Hydraulic Crimper Li-Ion
The B1350-CT is the first ‘C head’ tool of the next generation of cordless hydraulic tools, heralding a significantly advantageous evolution from current models.
Born of the renowned B135-C type crimping tool, the 130 kN B1350-CT is suitable for a wide range of connectors up to 400mmû using all semi-circular slotted dies common to Cembre 130kN tools.
New Li-Ion 18V 4 Ah batteries offer a higher capacity than 14.4V 3 Ah, while greater crimping speed and crimping force result from a revitalised hydraulic system with double speed action: a more rapid approach of dies to the connector then a more controlled, powerful speed for crimping. A maximum pressure sensor and security valve together assure greater precision and repeatability of the pressure cycle and double the provision for operator safety.
13T Battery Hydraulic Crimper Features
ò Greater crimping speed and force
ò Maximum pressure sensor and security valve for greater precision and operator safety
ò Bi-component plastic shell provides high resistance to wear and damage
ò Rubber grip
ò Low noise and minimal vibration for operator comfort
ò LED lighting area for added convenience and safety
ò Crimping cycle data (up to 200,000 events) stored on the memory card for transfer to PC by USB interface
Li-Ion Battery Features
ò Provides 100% of its energy between -15░C and 50░C
ò Electronic control of single cells to avoid overcharging and undercharging
ò Air-cooled charging technology to increase battery life
ò Quickest charging time
ò Auto-off to optimise energy consumption
Technical Data
Crimping Force132kN
DimensionsLength: 338mm Height: 344mm Width: 83mm
BatteryLi-Ion 18V 4.0 Ah
Weight (with battery)6.41kg

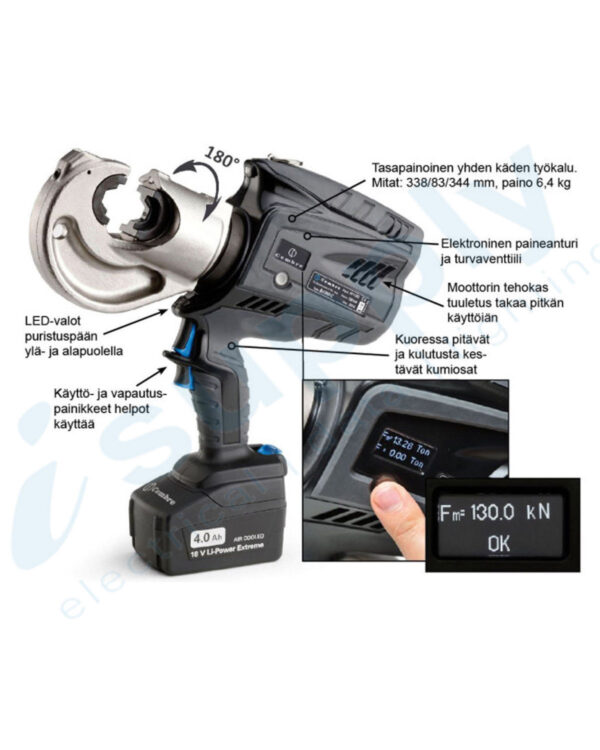

OLED Display
The OLED display provides essential real-time tool operating information data including:
ò Minimum set force and momentary force reached expressed in kN (confirms correct operation
ò Minimum set force and momentary force reached expressed in US Ton (confirms correct operation)
ò Minimum set pressure and momentary pressure reached expressed in the bar (confirm correct operation)
ò Minimum set pressure and momentary pressure reached expressed in Psi (confirm correct operation)
ò Battery charge level
ò No. of cycles performed and No. of cycles recommended before scheduled maintenance
ò Cembre logo, tool model and tool serial No.
ò LED Worklights (On and Off)
ò Return to factory settings/firmware version
The B1350-CT is supplied with
ò Battery and shoulder strap
ò Spare battery
ò Battery charger
ò Plastic carrying case suitable for storing the tool and seven die sets
