CEMBRE 13T BATTERY CRIMPER LI-ION-LONG HEAD

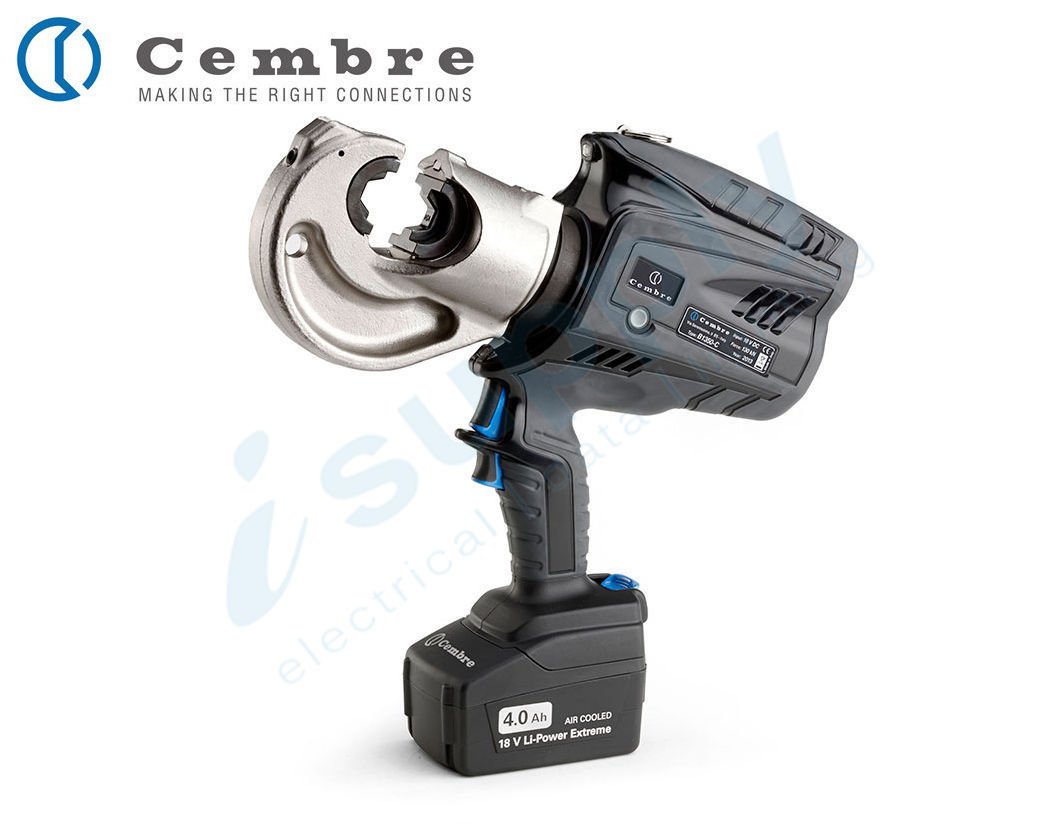

13T Battery Hydraulic Crimper Li-Ion Long Head
The B1350L-CT is the longer ‘C head’ tool in its new generation of cordless hydraulic tools, which heralds a significantly advantageous evolution from current models.
Born of the renowned B135LN-CT type crimping tool, the B1350L-CT is suitable for a wide range of connectors up to 400mm² using all semi-circularslotted dies common to Cembre 130 kN tools.
The crimping head can rotate through 180 for ease of operation while a large 44 mm jaw opening allows easier introduction/ removal of large size compression terminations and joints.
New Li-Ion 18V 4 Ah batteries offer a higher capacity than 14.4V 3 Ah, while greater crimping speed and crimping force result from a revitalised hydraulic system with double speed action: a more rapid approach of dies to the connector then a more controlled, powerful speed for crimping. A maximum pressure sensor and security valve together assure greater precision and repeatability of the pressure cycle and double the provision for operator safety.
13T Battery Hydraulic Crimper Features
• Greater crimping speed and force
• Maximum pressure sensor and security valve for greater precision and operator safety
• Bi-component plastic shell provides high resistance to wear and damage
• Rubber grip
• Low noise and minimal vibration for operator comfort
• LED lighting area for additional convenience and safety
• Crimping cycle data (up to 200,000 events) stored on memory card for transfer to PC by USB interface
Li-Ion Battery Features
• Provides 100% of its energy between -15°C and 50°C
• Electronic control of single cells to avoid overcharging and undercharging
• Air-cooled charging technology to increase battery life
• Quickest charging time
• Auto-off to optimise energy consumption
Technical Data
Crimping Force 132kN Jaw Opening Length 44mm Dimensions Length: 383mm
Height: 370mm
Width: 81mm Battery Li-Ion 18V 4.0 Ah Weight (with battery) 8.1kg
OLED Display
The OLED display provides essential real time tool operating information data including:
• Minimum set force and momentary force reached expressed in kN (confirms correct operation)
• Minimum set force and momentary force reached expressed in US Ton (confirms correct operation)
• Minimum set pressure and momentary pressure reached expressed in bar (confirm correct operation)
• Minimum set pressure and momentary pressure reached expressed in Psi (confirm correct operation)
• Battery charge level
• No. of cycles performed and No. of cycles recommended before scheduled maintenance
• Cembre logo, tool model and tool serial No.
• LED Worklights (On and Off)
• Return to factory settings/firmware version

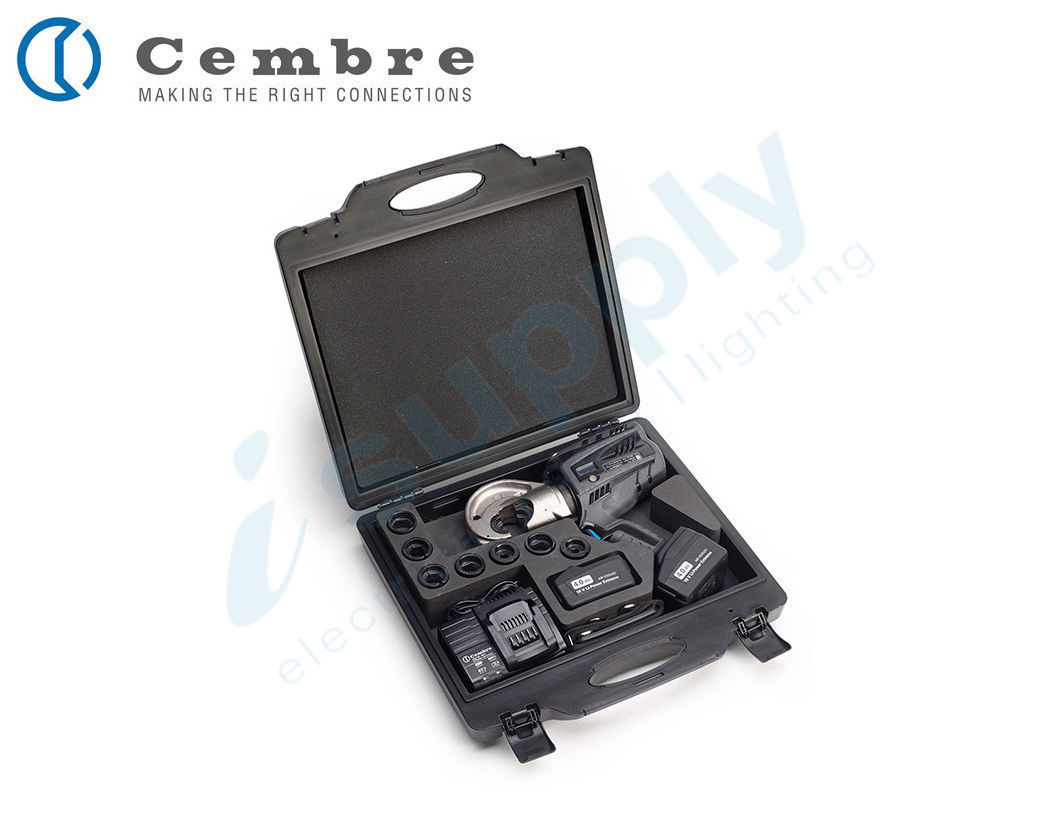

The B1350L-CT is supplied with
• Battery and shoulder strap
• Spare battery
• Battery charger
• Plastic carrying case suitable for storing the tool and seven die sets
Additional information
| UPC | |
|---|---|
| MPN | |
| Brand |
