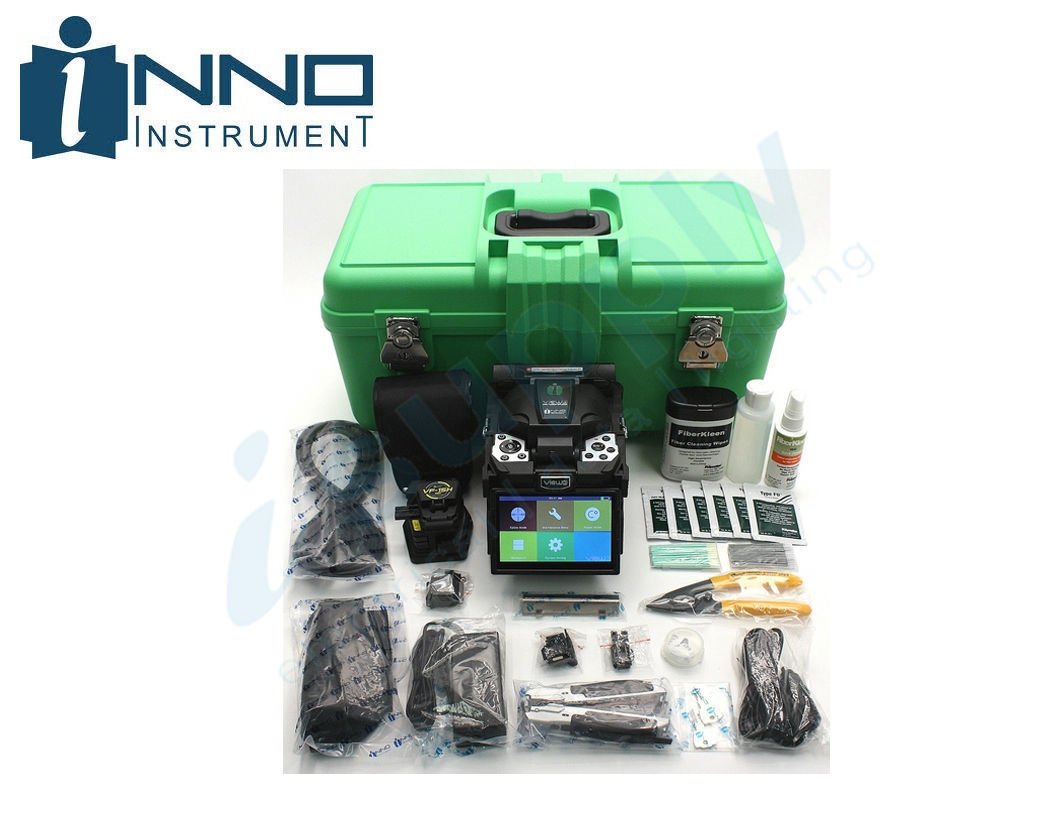

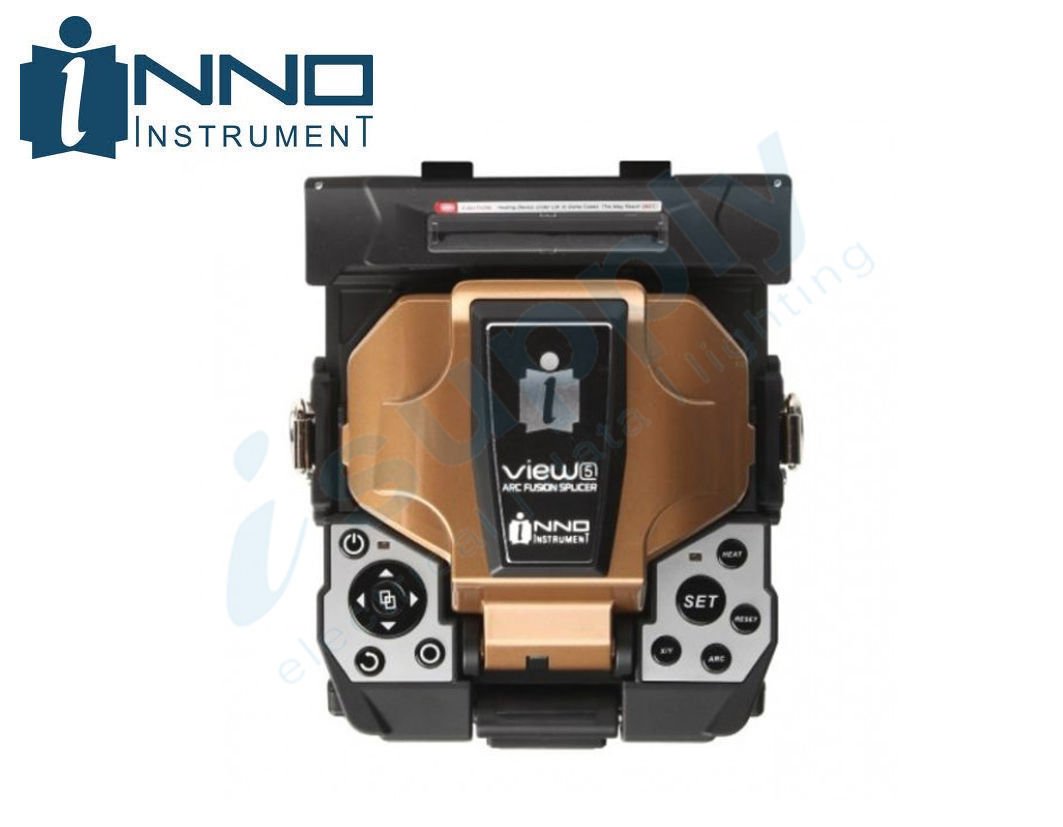

DESCRIPTION
View 5, a core-alignment splicer with the world’s highest fiber image magnification rate, is the most dependable fusion splicer in the market. View 5’s 5 inch high-resolution color LCD touch screen with user-friendly intuitive GUI (Graphic User Interface) offers large and clear fiber images to users.
By double-tapping the screen, users can zoom in & out the image to the world’s highest magnification of 520x. Also View 5’s compatibility with SOC (Splice-On-Connectors) will bring satisfactory experiences to users in FTTx field with maximum work efficiency through the fast heating time of 13s. Moreover, the 3 LED lights provide bright splice condition to the users working under dark environments. View 5 is the new industry standard of core-alignment splicer in the telecommunications industry.
FEATURES
Core Alignment Splicing Method with DACAS
(Digital Analysis Core Alignment System)
The World’s Highest Magnification and Resolution

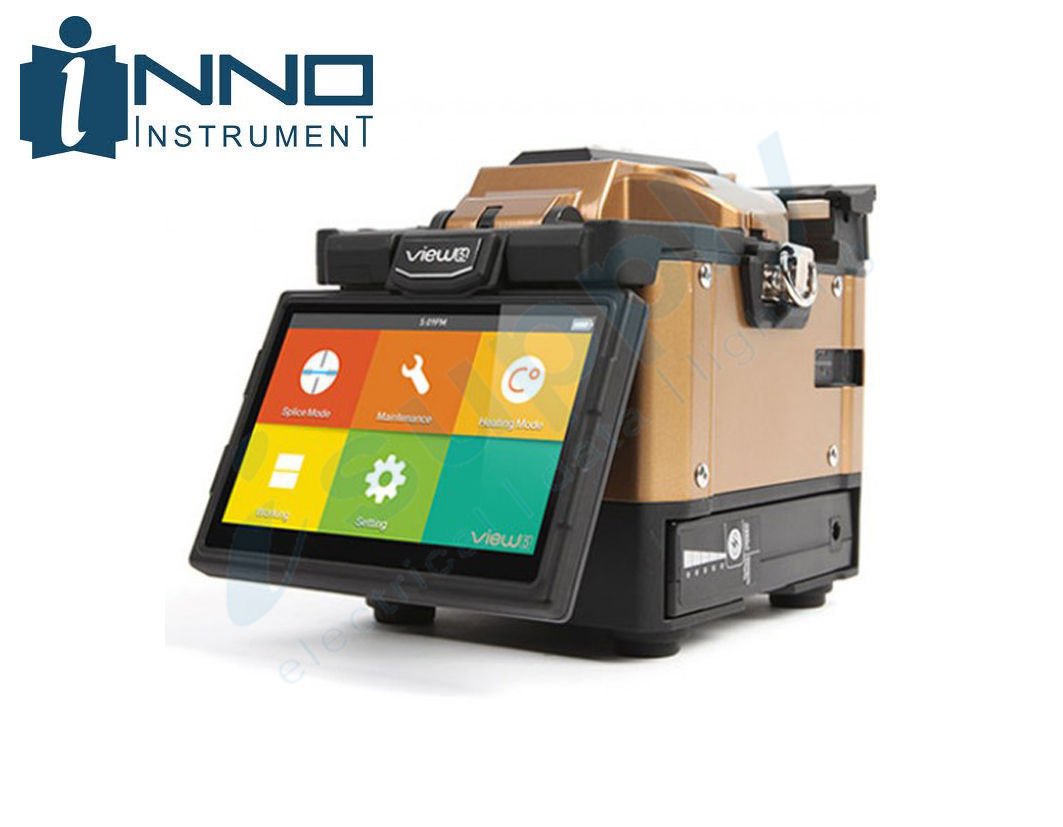

5” High-Resolution Color LCD Touch Screen
User-friendly Smart GUI
Double Tap to Zoom in & out
Fast Heating Time
Detachable SOC Holder and Heating Oven
High Capacity Battery
3 Bright LEDs and Illuminated Keypads
For Dark Environment
Ceramic Clamp for Improved Durability
Easy to Replace Electrodes
Harsh Weather Conditions Adaptability

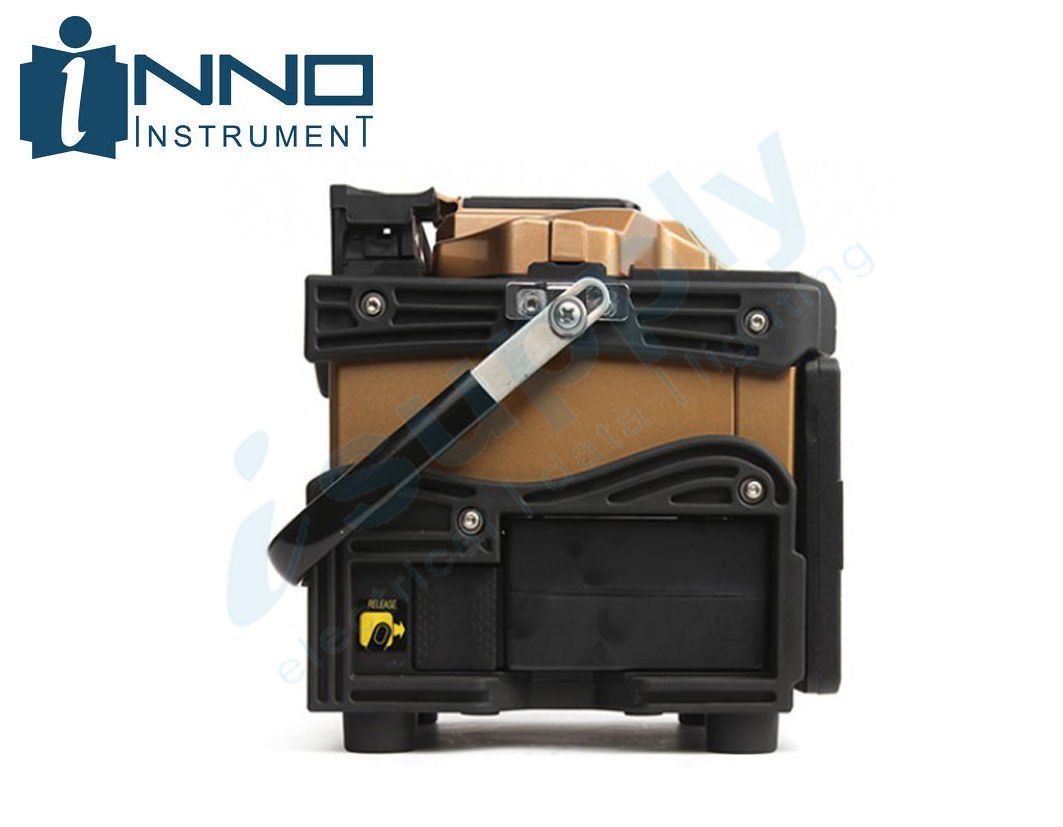

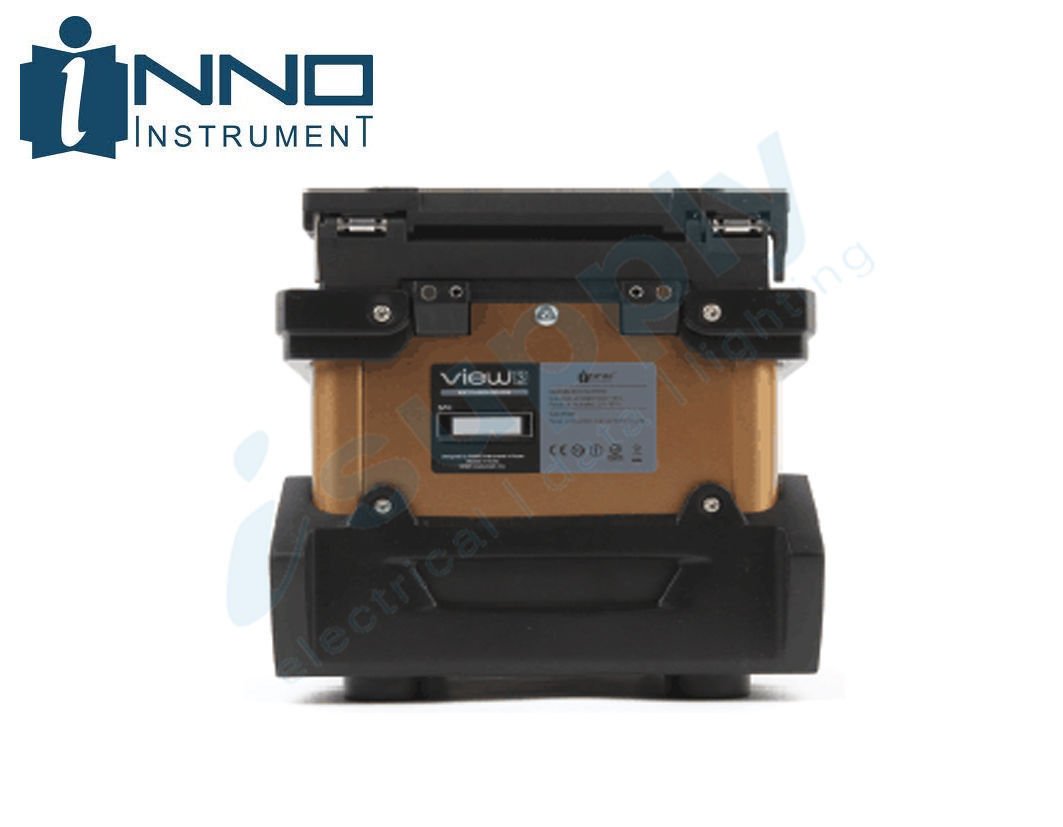

1.85kg weight (without battery)
Display
5” High-Resolution Color LCD Touch Screen
The View series certainly outdoes the other splicers’ viewing experience. Measuring a vast 5 inches across, the color LCD display has the highest resolution of 800 x 480 with very wide viewing angles.
Magnification
Double Tap to Zoom in & out
By double-tapping the screen, users can zoom in the fiber image to the industry’s highest magnification of 520X. So INNO Instrument achieves that fiber condition can be easily inspected with unaided eyes.
Interface
User-friendly Smart GUI
The advanced splicing functionality is available through clear options in tile-based design, so experts and even novices can understand its operation without assistance or special training.
Heating Performance
Fast Heating Time of 13 sec
View 5 has significantly increased the speed of heating to 13 sec, which delivers maximum work efficiency.
SOC Compatibility
Detachable SOC Holder and Heating Oven
View 5’s SOC compatibility with Detachable SOC holder and heating oven delivers satisfactory experiences to users in FTTx field.
Battery
High Capacity Battery
High capacity battery provides long enough power for working in the field, which is the industry’s standard 170 splicing/heating cycles by 4200mAh.
LED Working Light
3 Bright LEDs For Dark Environment
Even in a dark environment, the industry’s first 3 LEDs are just bright enough to cast a light on the fiber holders as well as the splice point.
Clamp
Ceramic Clamp for Improved Durability
Ceramic-made fiber clamp can secure the durability of stripped fiber by minimizing the damage on the fiber surface.
Electrode Cover
User-friendly Electrode Cover
Specially designed electrode covers make users replace electrodes in a much easier and faster way without any tools.
Model View 5 Dimension 147H x 130W x 155D mm Weight 2.21KG (with battery) / 1.85KG (without battery) Number of Fiber Single Applicable Fibers SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655) Compatible Fiber / Cable 0.25~3.0 mm / Indoor Cable Cleaved Length Diameter: 0.125~1 mm / Cleave Length: 8~16 mm Cladding Diameter 80~150 μm Splicing Mode Max 128 modes Heating Mode Max 32 modes Typical Splice Loss SM:0.02dB / MM:0.01dB / DS:0.04dB / NZDS:0.04dB/G.657:0.02dB(ITU-T Standard) Return Loss >> 60 dB Lighting 3 White LEDs Splicing Time Quick mode : 7 sec / Auto mode : 9 sec Estimated Splice Loss Available Protection Sleeve Length 20~60 mm Heating Time FP-03 typical heating time: 13 sec Results Storage The last 2000 results Tension Test 1.96~2.25N Operating Condition Operating Altitude: 0~5000m above sea level, 0.95% relative humidity, -10~50°C, Max Wind 15m/s Storage Condition 0~95% relative humidity, -40~80°C Display 90° bi-directional view, 5.0” Color High Resolution Display Fiber View & Magnification X, Y, XY, X/Y : 520X Magnification Power Supply AC Input 100-240V, DC Input 9-14V No. of Splice / Heating with Battery 4200mAh Battery Capacity, Typical 170 times (Splice+Heat) Operating Methods Button / Touch screen Automatic Calibration Automatic arc calibration by air pressure and temperature Electrode Life 3500 arcs, can be extended by using an electrode grinder Terminal USB2.0 / MINI USB
