Designed to quickly and easily crimp electrical connectors up to and including 400mm2 CU and 300mm2 Al
Industry exclusive automatic two speed pump design
Sturdy steel trigger guard
Up to 300 per cent faster than other brands worldwide
Comes with case, 2 x 5Ah lithium batteries & 240V charger
Product Description

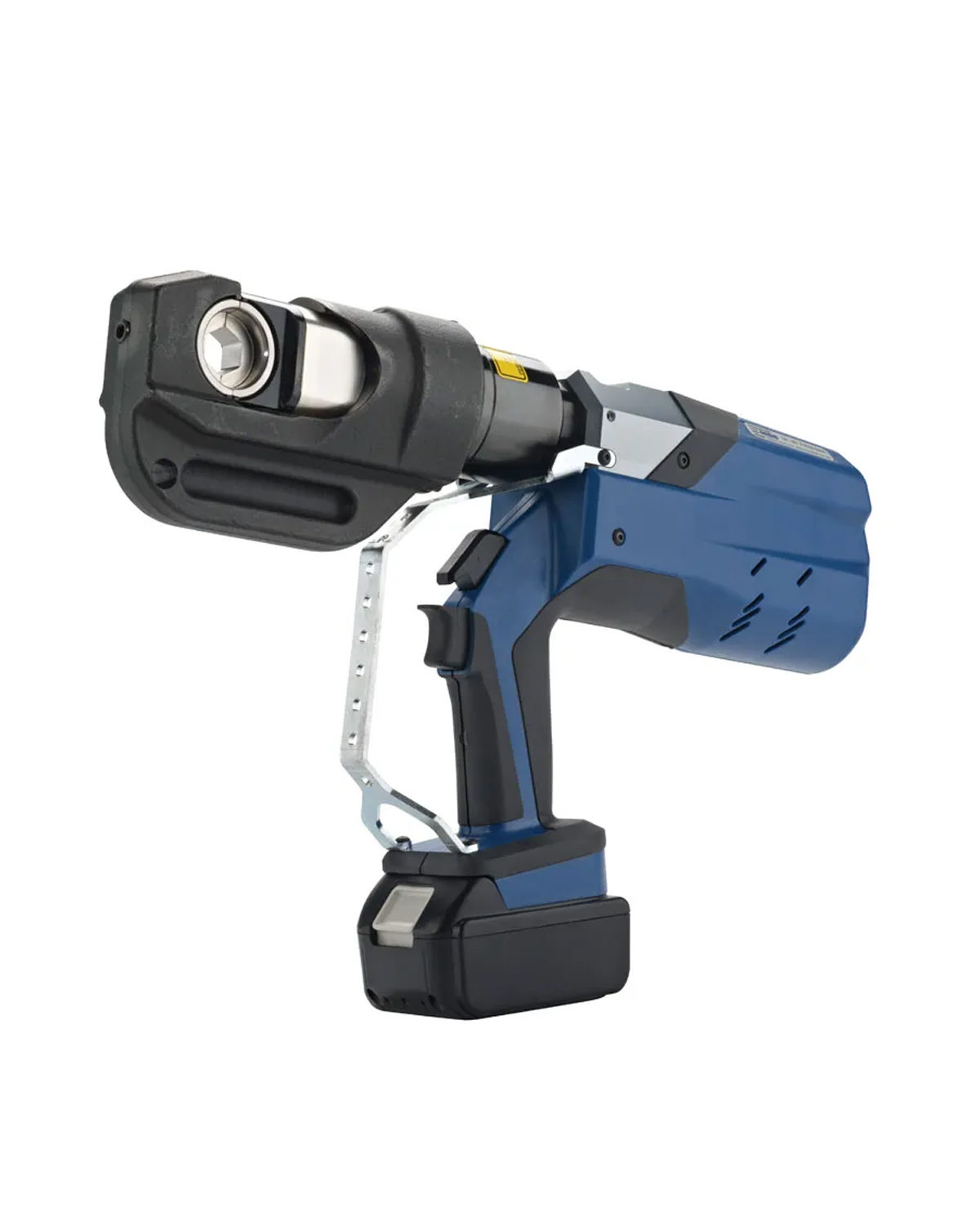

Platinum Series Battery Powered Hydraulic Crimper 13 Tonne
The Platinum Series Battery Powered Hydraulic Crimper has been designed to quickly and easily crimp electrical connectors up to and including 400mm– CU.
The industry exclusive automatic two speed pump design, delivers rapid advance, combined with unmatched high force second stage crimping speed, up to 300% faster than other brands – Worldwide.
The sturdy steel trigger guard helps to protect the trigger from unintentional operation and field knocks.
Each tool is supplied with a 220v charger, 2 x re-chargeable batteries and a Heavy Duty steel carry case. The crimping dies are supplied separately.
Patent Pending - Patent No. 13573/2011
Platinum Series Battery Powered Hydraulic Crimper Features
• 100+ Crimps per battery charge
• Crimps up to 300% faster than other brands*
• Visual crimp indicator ensures operator of correct crimp every time (patent pending)
• Audible click indicator ensures operator of correct crimp pressure
• No retract pinch points for ultimate safety (patent pending)
• Braked Motor - Quick Stop Motion for user safety
• Large 42mm 'C' head opening rotatable 355–
• Pump block fully machined from premium grade alloy
• One hand operation - ergonomically designed hand grip for unmatched comfort and safety
• Tool housing uses two part composition with soft cover for operator comfort
• High performance quick recharge 18V x 3.0 Ah Li-ion batteries
• Variable speed trigger for full piston control - mechanical release trigger saves battery life
• Accessories also available
*Crimp speed comparison based on competitor published data at time of publishing.
Technical Data
Output Force14.6 Short Ton13 Tonnes
Tool Weight15.8lbs7.2kg complete with 3.0Ah battery
Jaw Opening1.65"42mm
Length16.45"425mm
Width2.87"73mm
Height11.4"290mm
Operating Voltage18 V-DC
Recharge Time1 hour
Battery18V x3.0Ah LI-ION
Additional information
| Weight | 7.2 kg |
|---|---|
| Dimensions | 425 × 73 × 290 cm |
| Material Group | JN |
| EAN | |
| Brand | |
| For Bulk Orders Please Call: | |
| Type | |
| Supplier | Cabac |
