Indoor Fire rated fibre to IEC 60331-25 120 minutes at 750 Degrees Celsius max increase in attenuation 0.5dB
Jelly filled mono tube construction - red LSZH jacket
Mica tape and glass yarns

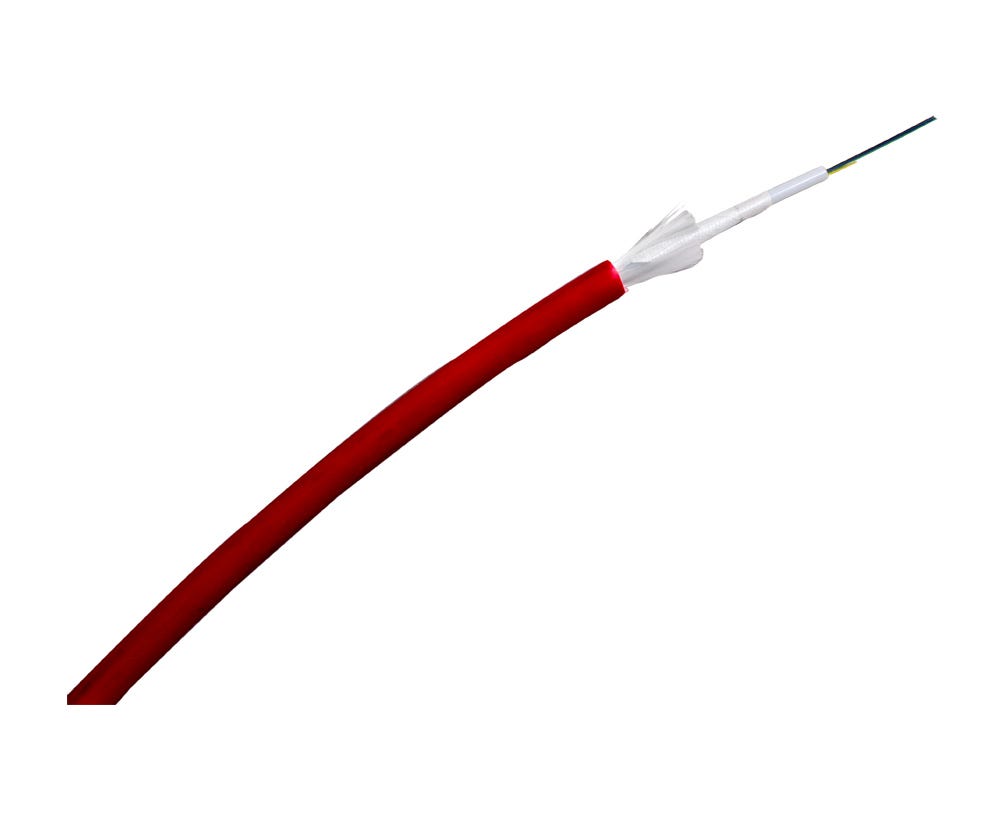

Product Description
A fire resistant mono tube cable featuring heat resistant Mica tape, glass yarns and an LSZH jacket making it suitable for use in applications such as fire alarm systems, requiring up to 120 minutes of fire resistance in accordance with IEC 60331-25.
MM3FR Cable Features
- Fire resistant to IEC 60331-25 @ 750-_C 120 minutes
- Heat resistant Mica tape
- Red LSZH UV resistant jacket
- Aramid glass yarns provide protection and strength
- Mono tube gel filled construction
Technical Specifications
Mode: OM3
# of Cores - Fibre: 12
Armoured: Yes
Sacrificial Sheath: No
Cable Jacket Material: LSZH - Low Smoke Zero Halogen
Fibre Cable Type/Construction: MT | Mono Tube
Jacket Colour: Red
Additional information
| Material Group | TJ |
|---|---|
| EAN | |
| Brand | |
| For Bulk Orders Please Call: | |
| Type | |
| Supplier | Cabac |
