MSS Fibre 24F LOOSE TUBE CABLE SM SAC SHEATH CAB-LT-24-SMSS

A termite resistant loose tube cable featuring a sacrificial jacket, non-metallic strength member, gel filled tubes and a dry block core

For use in both direct bury and conduit/duct application

Blue UV and insect/termite resistant Nylon (Polyamide) jacket

Black PE (Polyethylene) UV resistant inner & outer sheath

Polyester based rip cords for easy sheath removal

Product Description

24F Loose Tube PE Sacrificial Cable SM

A termite resistant loose tube cable featuring a sacrificial jacket, non-metallic strength member, gel filled tubes and a dry block core, for use in both direct bury and conduit/duct applications.

The Thixotropic gel filled tubes and water swellable yarns (dry core) prevent water ingress while the non-metallic glass fibre reinforced plastic central strength member maintains excellent tensile strength.

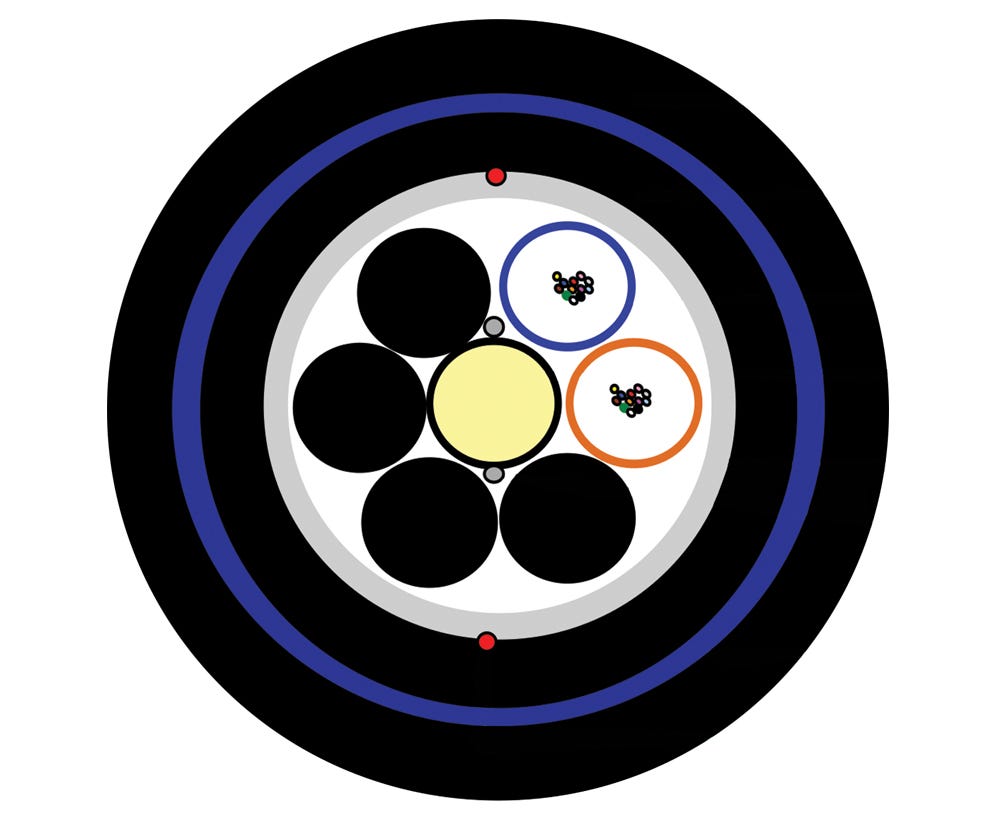

This Sacrificial Sheath loose tube construction features an inner UV resistant Polyethylene (PE) sheath under a termite/insect resistant Polyamide Nylon jacket with an outer UV resistant Polyethylene (PE) sacrificial sheath.

Other options include standard loose tube, Composite (MM + SM) and CST Armour.

Loose Tube PE Sacrificial Cable Features

• Blue UV and insect/termite resistant Nylon (Polyamide) jacket

• Black PE (Polyethylene) UV resistant inner sheath

• Polyester based rip cords for easy sheath removal

• Water blocking tape and swellable yarns prevent ingress into the core

• Thixotropic gel filled tubes prevent water ingress into the tubes

• Non-metallic fibre reinforced plastic rod central strength member provides tensile strength

Technical Specifications

Mode: SM

# of Cores - Fibre: 24

Armoured: No

Sacrificial Sheath: Yes

Cable Jacket Material: Nylon

Fibre Cable Type/Construction: LT | Loose Tube

Jacket Colour: Blue
