MSS Fibre 6F LOOSE TUBE CABLE OM4 PEnYLON CAB-LT-06-MM4

Dry blocked central non-metallic strength member with fibres contained in jelly filled loose tubes (12/tube)

Blue nylon jacket over PE sheath

For direct burial underground use

Insect-resistant nylon jacket

Product Description

6F Loose Tube Cable OM4

External Underground Loose Tube Cable- Multimode

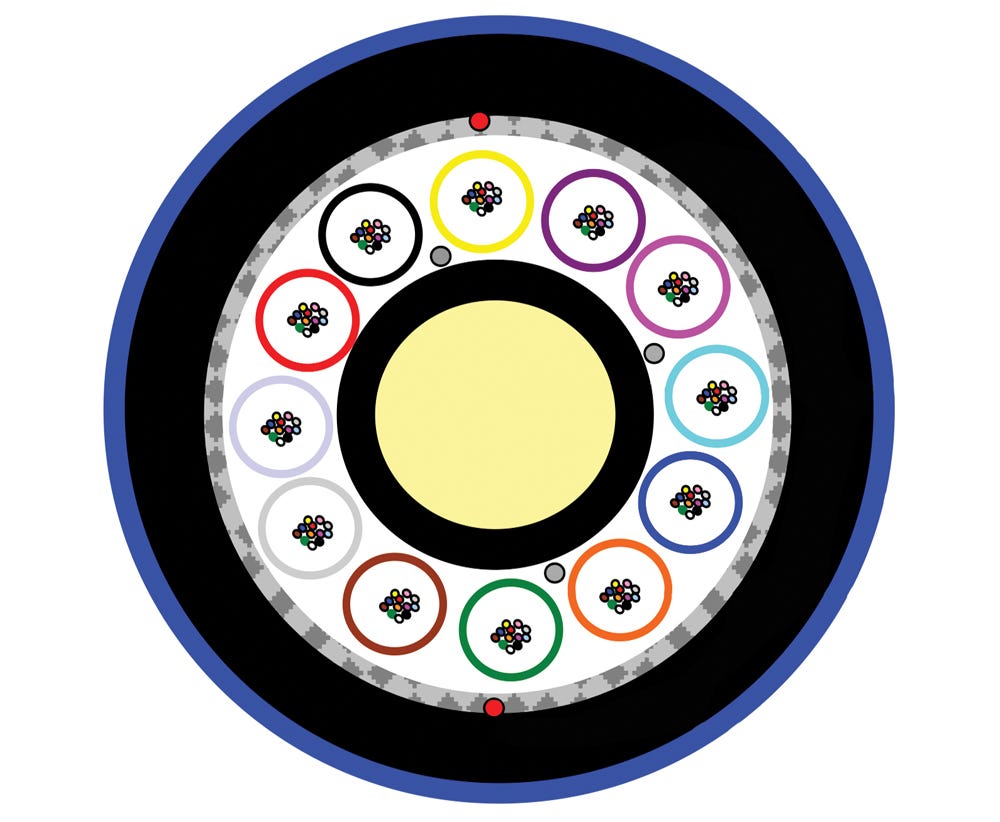

A termite resistant loose tube cable featuring a non-metallic strength member, gel filled tubes and a dry block core, for use in both direct bury and conduit/duct applications. The Thixotropic gel filled tubes and water swellable yarns (dry core) prevent water ingress while the non-metallic glass fibre reinforced plastic central strength member maintains excellent tensile strength.

This standard loose tube construction features an inner UV resistant Polyethylene (PE) sheath and an outer termite/UV resistant Polyamide Nylon jacket.

Other options include Composite (MM + SM), Sacrificial Sheath and CST Armour.

Loose Tube Cable Features

• Blue UV and Insect/Termite resistant Nylon (Polyamide) Jacket

• Black PE (Polyethylene) UV resistant Inner sheath

• Polyester based rip cords for easy sheath removal

• Water blocking tape and swellable yarns prevent ingress into the core

• Thixotropic gel filled tubes prevent water ingress into the tubes

• Non-metallic fibre reinforced plastic rod central strength member provides tensile strength

Technical Specifications

Mode: OM4

# of Cores - Fibre: 6

Armoured: No

Sacrificial Sheath: No

Cable Jacket Material: Nylon

Fibre Cable Type/Construction: LT | Loose Tube

Jacket Colour: Blue
