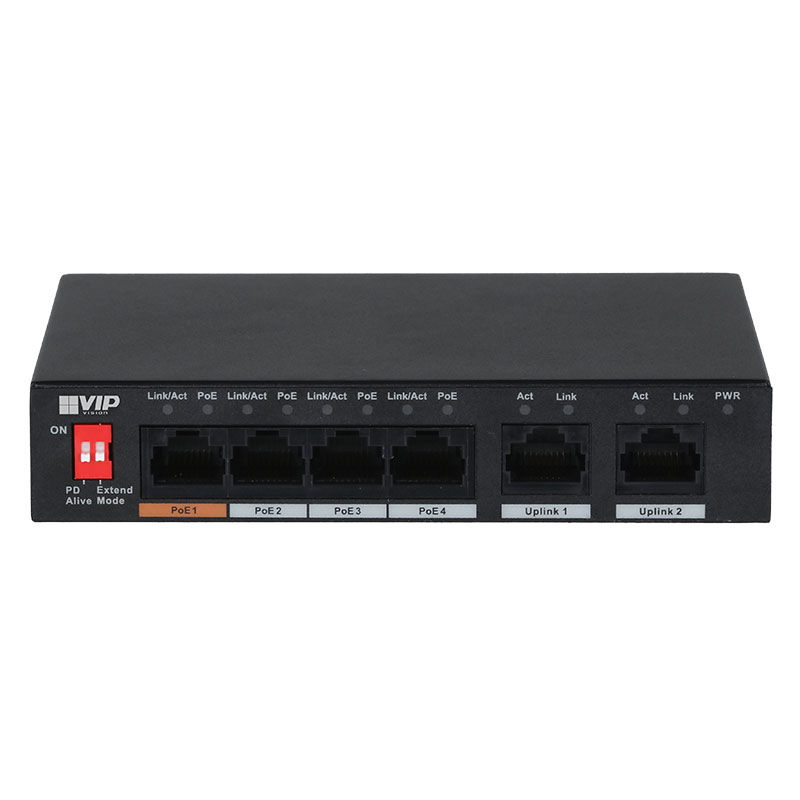

The VSPOE-SWA4 is a desktop mount, fast Hi-PoE switch in 4 ports. It is ideal for building secondary networks - providing data and power to devices on the edge of a network, such as CCTV cameras, wireless access points, IP telephones, network access control systems and more.
Product features:
• 4 x PoE+ device ports with 10/100Mbps per port
• 1 x Hi-PoE device port with 10/100Mbps per port
• Total PoE power load up to 60W
• Extend mode takes Ethernet cable runs up to 250m
• Unmanaged switch for plug & play applications
• Desktop mount for home and SOHO use
• Professional appearance full metal enclosure
SPECIFICATIONS
Ports: 4 ports
Speed: Device Ports
Device Ports: Uplink Ports
Uplink Ports: 1 x 10/100 Base-T
Switching Capacity: 1Gbps
Packet Forwarding Rate: 744Kpps
Exchange Mode: N/A
PoE: Yes
PoE Protocol: PoE (IEEE802.3af) / PoE+ (IEEE802.3at) / Hi-PoE
Switch Power Load: Ports 1: ≤60W / Port 2-4: ≤30W (Total: ≤60W)
Switch Management: Unmanaged
MAC Address Capacity: 1K
Virtual LAN: N/A
Network Time Protocol: N/A
Spanning Tree Protocol: N/A
Port Aggregation: N/A
Port Mirroring: N/A
LLDP: N/A
DHCP: N/A
Extend Mode: Up to 250m range at 10Mbps (all ports via device switch)
Flow Control: N/A
Security Features: N/A
System Maintenance: N/A
Quality of Service: N/A
Network Management: N/A
PoE Management: N/A
Input Power: 48 ~ 57VDC
Lightning Protection: Common Mode: 2kV / Differential Mode: 1kV
Mounting Options: Desktop
Operating Environment: -10°C~55°C / RH5%~95%
Weight: 0.29kg

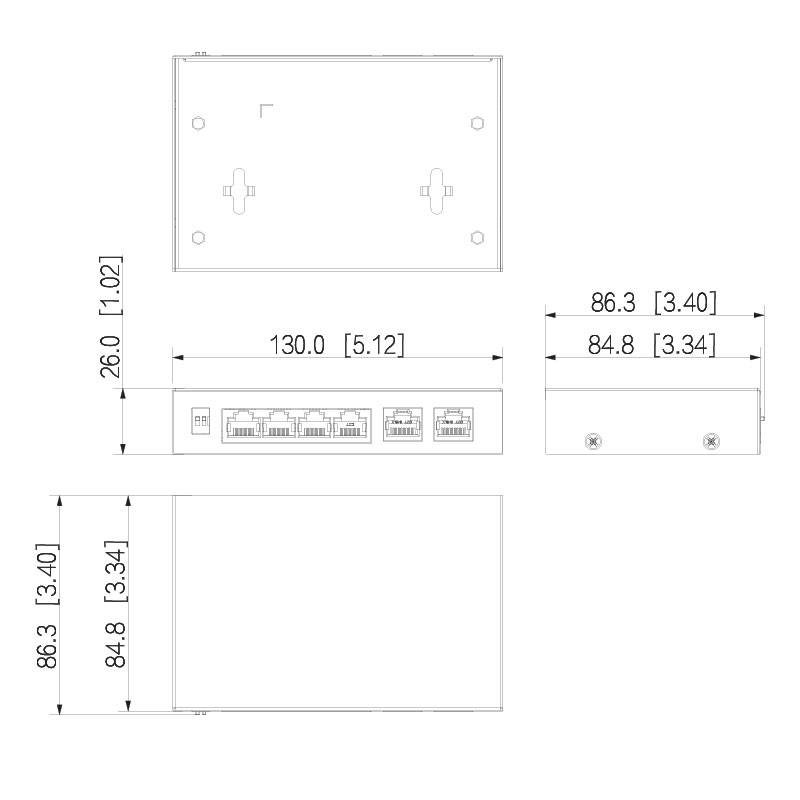

Dimensions: 130 x 85 x 26mm
Warranty (Years): 4
Shipping Weight and Dimensions
Includes product packaging
Width: 80 mm
Height: 270 mm
Depth: 240 mm
Weight: 1.80 kg
