Product Summary

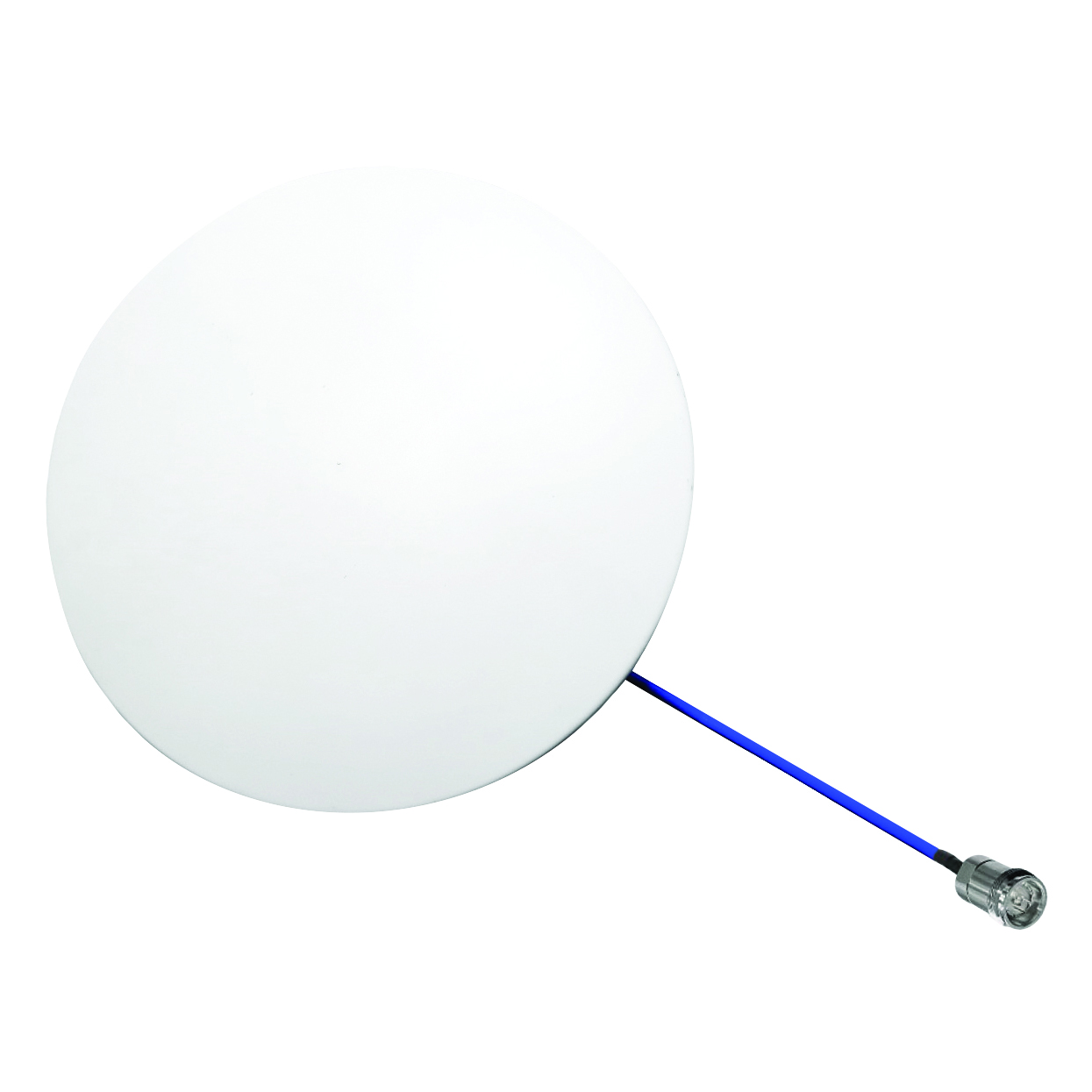

The 5G04-I is an Omni Directional indoor 3/4/5G multi-band antenna intended for use in bands 698-960MHz, 1710-6000MHz. Included is a plastic mounting nut to secure to the ceiling. The 5G04-I antenna has up to 6.3dBi gain. The antenna utilises a low loss 4.3-10 DIN female connector and is lightweight, making for easy mounting.
Features and Benefits
Ceiling mount indoor cellular antenna for use in GSM, CDMA, PCS, CDMA2000, WCDMA, TD-SCDMA, TD-LTE, FDD-LTE systems
Designed for use in DAS systems for indoor signal coverage
It covers bands 698-960MHz and 1710-6000MHz
High gain with low PIM and low VSWR
DC ground with corrosion resistance
Horizontal beam width of 360 degrees
Additional information
| For Bulk Orders Please Call: | |
|---|---|
| Type | |
| Brand | |
| Supplier | MATCHMASTER |
| EAN |
