Product Summary

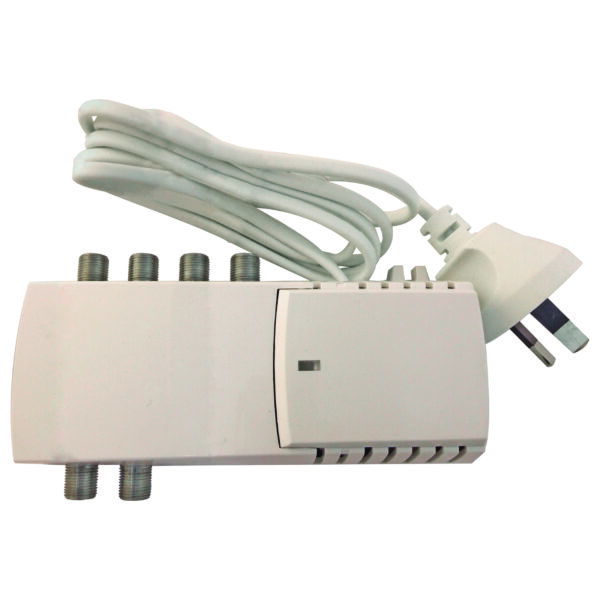

The 10MM-AS38 is a Terra 20dB gain locally powered 4-way splitter amplifier with built-in 16dB gain adjustment to set your optimal signal levels. The AS38 is the perfect solution for apartment applications where you need to amplify the signal to multiple devices while maintaining signal quality. In addition, the AS38 features a built-in -20dB test port so you can test the signal without disconnecting the network.
Features and Benefits
4-way splitter amplifier 47 to 862MHz with 20dB Gain
16dB gain adjustment
Die-cast housing inside a heavy-duty plastic casing
Maximum output level IMD3=60 dB (DIN45004B) 100 dB?V
Power consumption 230 V AC 50/60 Hz 3 Watt
Operating temperature range 20 ? +50 degrees C
Pack Quantity
Inner: 1 box of 1 piece
Outer: 1 carton of 20 boxes (20 pieces)
