The INTIPDDS2 is a single channel video intercom solution ideal for homes and dual-premises buildings such as duplexes. This door station features a 2.0MP camera with auto day/night IRC, all in a stylish aluminium weather/vandal resistant body.
Product features:
• 1/2.8’’ 2.0MP 1.9mm lens camera with 140° FOV
• Built-in microphone and speaker for 2-way talk
• Built-in NFC card reader for keycard access (up to 10,000 NFC cards)
• Connect with intercom monitor(s) via Ethernet
• Door control, alarm and RS485 input/output relays
• Intuitive, easy-to-use interface
• Weather and vandal resistant IP65/IK08 aluminium body
• Power over Ethernet (12VDC, 802.3af)
* We recommended that Door Stations are mounted in a sheltered location, not exposed directly to weather, as only the front plate is weather resistant.
* When installing the Door Station, apply outdoor silicone sealant between the Door Station & the wall, & seal the hole that has been created for the cable to prevent water ingress. If using a mounting box, ensure the box is sealed, & the included waterproof rubber seals are used when installing the screws.

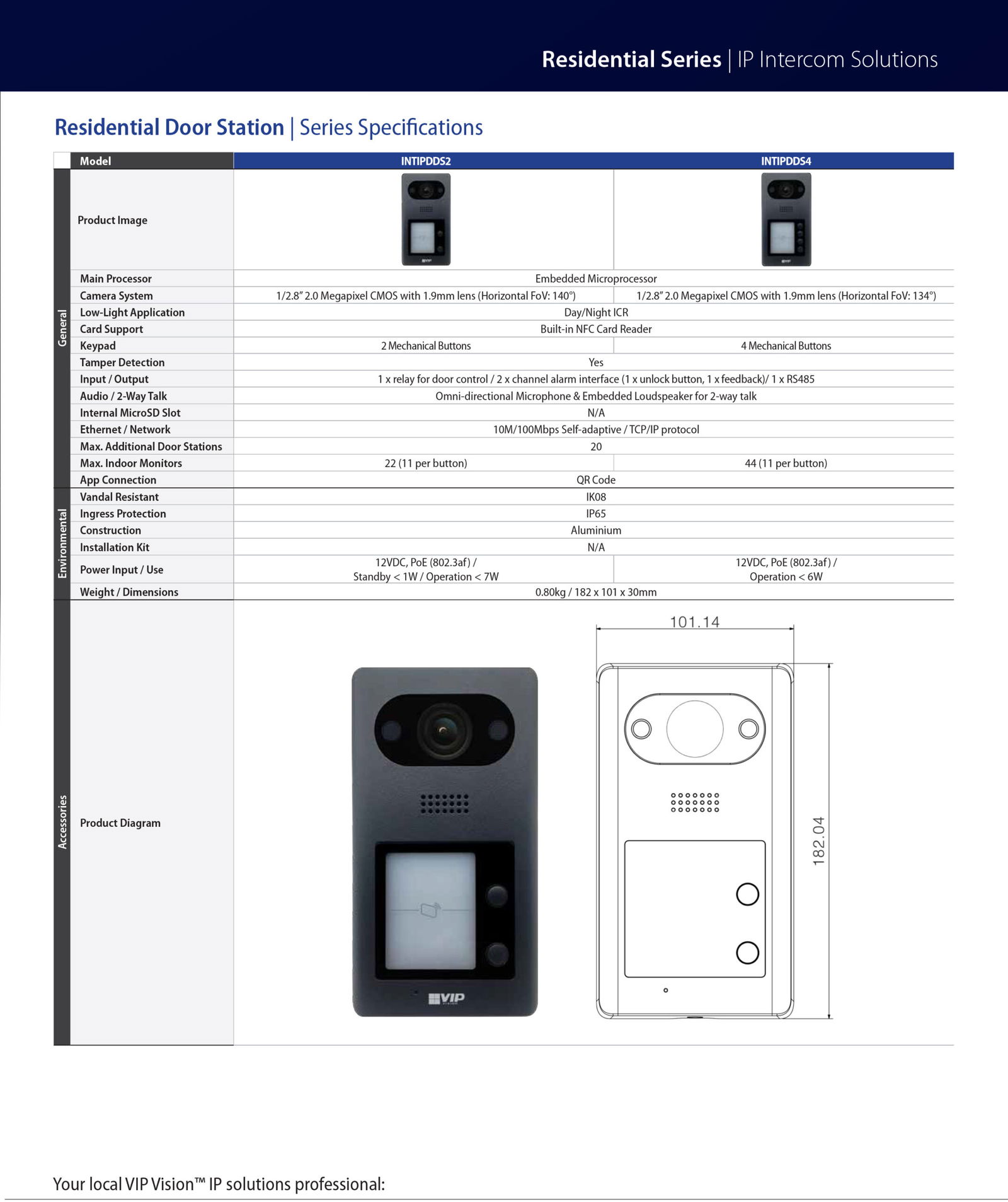

SPECIFICATIONS
General:
Main Processor: Embedded Microprocessor
Button Illumination: None
Card Support: Built-in NFC Card Reader, Supports up to 10,000 13.56MHz NFC cards
Tamper Detection: Yes
Internal MicroSD Slot: N/A
Max. Additional Door Stations: 20
Max. Indoor Monitors: 22 (11 per button)
App Connection: QR Code
Camera:
Camera System: 1/2.8’’ 2.0 Megapixel CMOS with 1.9mm lens (Horizontal FoV: 140°)
Low-Light Application: Day/Night ICR
Input / Output: 1 x relay for door control / 2 x channel alarm interface / 1 x RS485
Audio / 2-Way Talk: Omni-directional Microphone & Embedded Loudspeaker for 2-way talk
Ethernet / Network: 10M/100Mbps Self-adaptive / TCP/IP protocol
Environmental:
Vandal Resistant: IK08
Ingress Protection: IP65
Construction: Aluminium
Installation Options: N/A
Power Input: 12VDC, PoE (802.3af)
Power Consumption: Standby < 1W / Operation < 7W Weight: 0.80kg Dimensions: 182 x 101 x 30mm Other: Keypad: 2 Mechanical Buttons Series: D Series Warranty (Years): 4 Shipping Weight and Dimensions
Includes product packaging
Width: 240 mm
Height: 150 mm
Depth: 180 mm
Weight: 0.65 kg
