The INTIPMONGBL is a large touch screen indoor monitor that integrates into IP video intercom solutions. The monitor is used for two-way talk with an apartment door station, featuring live-view of the door station camera.
Product features:
• 10" TFT capacitive touch screen
• Record and snapshot video calls/messages
• All calls and messages logged
• Prevent unwanted calls with Do Not Disturb mode
• Alarm system integration
• Power over Ethernet (12VDC, 802.3af)
• SD card storage (up to 8GB)

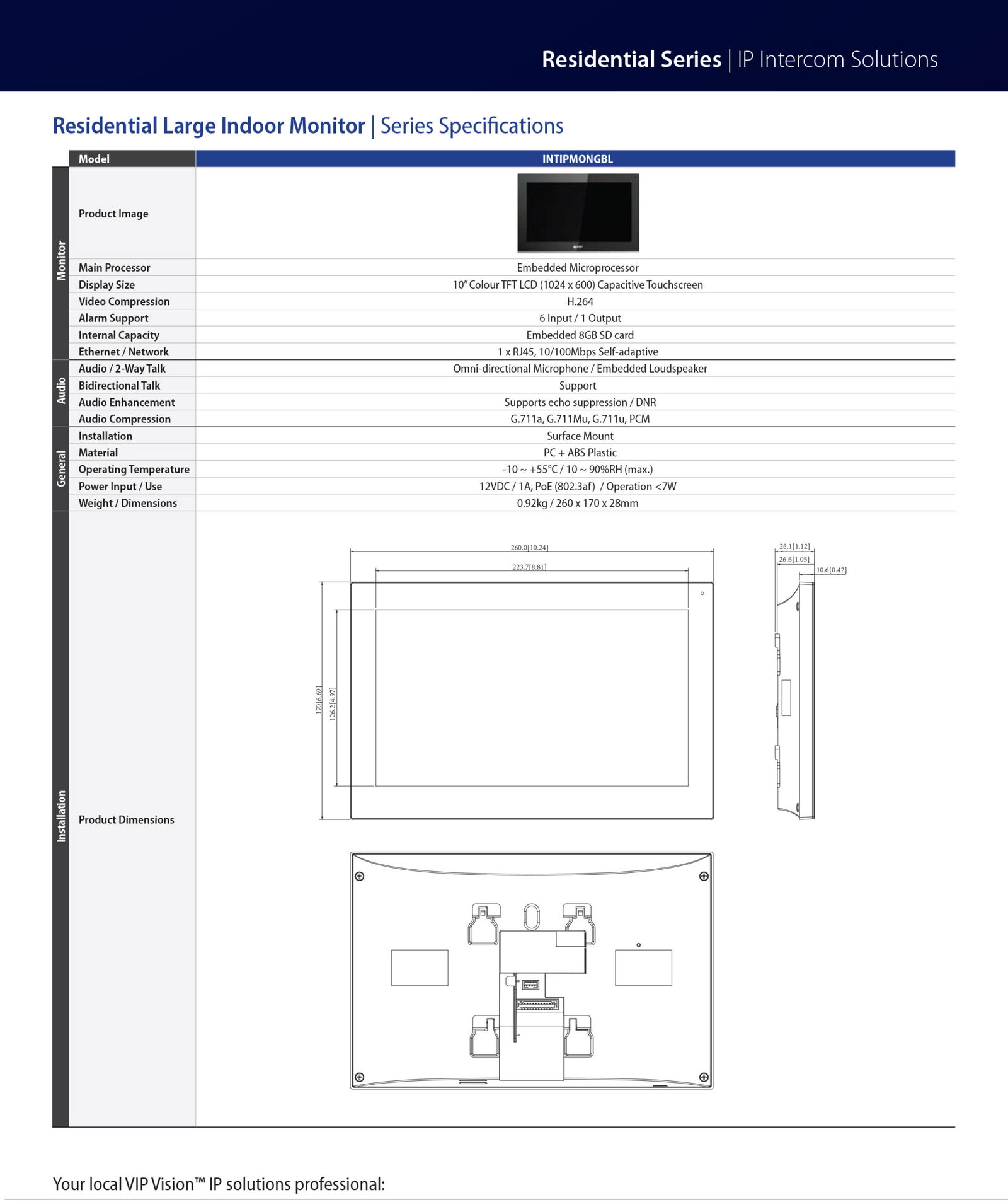

SPECIFICATIONS
Monitor:
Main Processor: Embedded Microprocessor
Video Compression: H.264
Audio Input: Omni-directional Microphone
Audio Output: Embedded Loudspeaker (1.5W)
Bidirectional Talk: Support
Display Size: 10” Colour TFT LCD
Display Resolution: 1024 x 600
Alarm Support: Yes; 6 Input channels / 1 output channel
Operational Input: Touchscreen
Internal Capacity: Built-in 8GB SB Card
Ethernet: 10M/100Mbps adaptive
Network Protocol: TCP/IP
Environmental:
Operating Temperature: -10 ~ +55°C / 10 ~ 90%RH (max.)
Installation: Surface
Power Input: PoE 12VDC 1A
Power Consumption: <7W Dimensions: 260 x 170 x 28mm Weight: 0.92kg Other: Series: G Series Warranty (Years): 4 Shipping Weight and Dimensions
Includes product packaging
Width: 340 mm
Height: 168 mm
Depth: 168 mm
Weight: 0.85 kg
