The INTIPRDSG is a single channel video intercom solution ideal for homes and single-premises buildings. This door station features a 2.0MP camera, all in a stylish aluminium weather and vandal resistant body.
Product features:
• 1/2.8’’ 2.0MP 1.95mm lens camera with 160° FOV
• Built-in microphone and speaker for 2-way talk
• Connect with intercom monitor(s) via Ethernet
• Alarm and RS485 input/output relays
• Intuitive, easy-to-use interface
• Weather and vandal resistant IP55/IK07 aluminium body
• Power via 12VDC or Power over Ethernet (802.3af)
• Flush and surface mount installation options
* We recommended that Door Stations are mounted in a sheltered location, not exposed directly to weather, as only the front plate is weather resistant.
* When installing the Door Station, apply outdoor silicone sealant between the Door Station & the wall, & seal the hole that has been created for the cable to prevent water ingress. If using a mounting box, ensure the box is sealed, & the included waterproof rubber seals are used when installing the screws.
*2-Wire connection requires the INTIPPOE2W. Note it is one device per terminal (6 total).

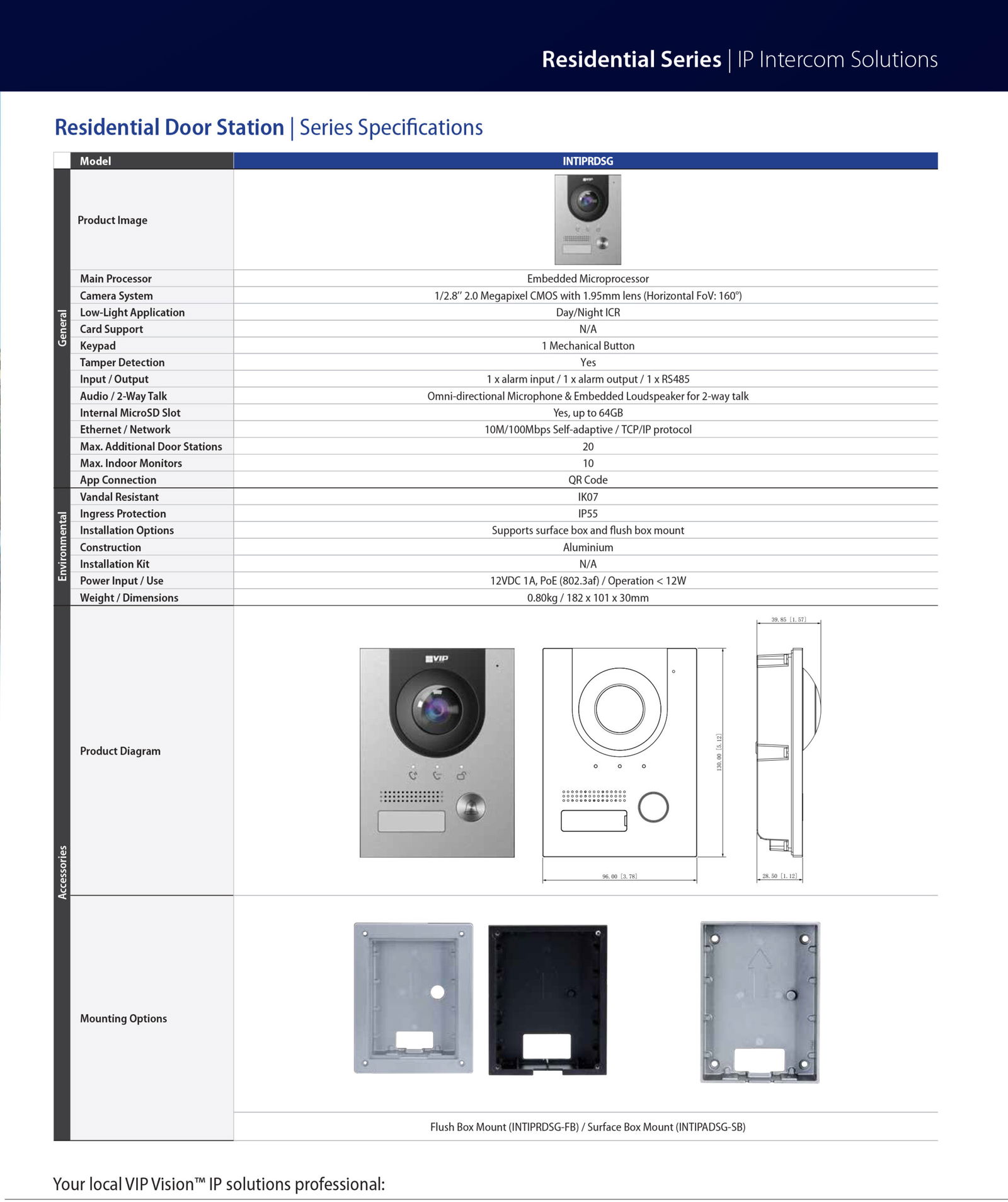

SPECIFICATIONS
General:
Main Processor: Embedded Microprocessor
Button Illumination: None
Card Support: N/A
Tamper Detection: Yes
Internal MicroSD Slot: Yes, up to 64GB
Max. Additional Door Stations: 20
Max. Indoor Monitors: 10
App Connection: QR Code
Camera:
Camera System: 2.0 Megapixel CMOS camera with 1.95mm lens (Horizontal FoV: 160°), WDR
Low-Light Application: Infrared
Input / Output: 1 x alarm input / 1 x alarm output / 1 x RS485
Audio / 2-Way Talk: Omni-directional Microphone & Embedded Loudspeaker for 2-way talk
Ethernet / Network: N/A
Environmental:
Vandal Resistant: IK07
Ingress Protection: IP55
Construction: Aluminium
Installation Options: Supports surface box and flush box mount
Power Input: 12VDC 1A / PoE (802.3af)
Power Consumption: <12W Weight: 0.35kg Dimensions: 130 x 96 x 29mm Other: Keypad: N/A Series: G Series Warranty (Years): 4 Shipping Weight and Dimensions
Includes product packaging
Width: 96 mm
Height: 130 mm
Depth: 29 mm
Weight: 0.35 kg
