The INTIPRDSJ is a single channel video intercom solution ideal for homes and single-premises buildings. It can be operated via a single backlit button or via NFC-capable card, with voice prompts to inform the user about door lock, call & resident status. Also features door sensor and door strike integration, remote unlock via smartphone and visitor audio/video messaging functions.
Product features:
• 1/4’’ 1.0MP camera with 122° FOV
• Built-in microphone and speaker for 2-way talk
• Built-in NFC card reader for keycard access (up to 10,000 NFC cards)
• Connect with intercom monitor(s) via Ethernet
• Door control, alarm and RS485 input/output relays
• Intuitive, easy-to-use interface
• Power over Ethernet (12VDC, 802.3af)
• IP65 rated weather resistant matte plastic body (front plate)
* We recommended that Door Stations are mounted in a sheltered location, not exposed directly to weather, as only the front plate is weather resistant.
* When installing the Door Station, apply outdoor silicone sealant between the Door Station & the wall, & seal the hole that has been created for the cable to prevent water ingress. If using a mounting box, ensure the box is sealed, & the included waterproof rubber seals are used when installing the screws.

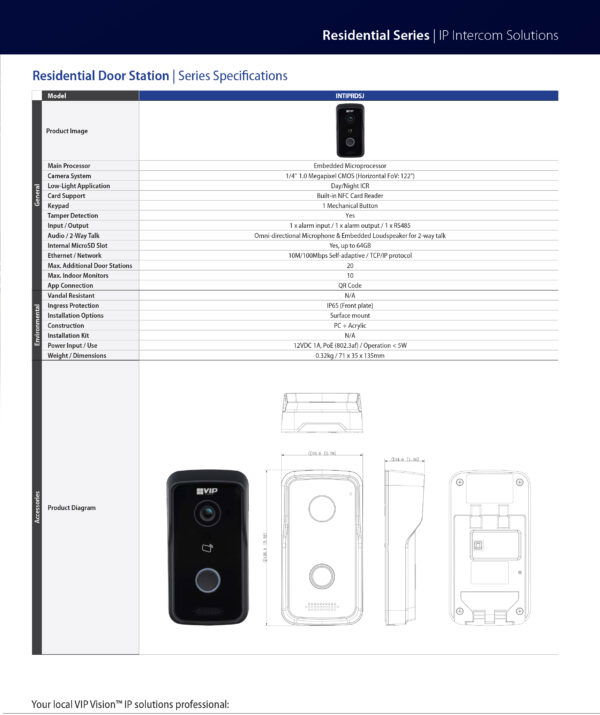

SPECIFICATIONS
General:
Main Processor: Embedded Microprocessor
Button Illumination: Backlit Interface
Card Support: Built-in NFC Card Reader, Supports up to 10,000 NFC cards
Tamper Detection: Yes
Internal MicroSD Slot: No
Max. Additional Door Stations: 20
Max. Indoor Monitors: 10
App Connection: QR Code
Camera:
Camera System: 1/4" 1.0 Megapixel CMOS (Diagonal FoV: 122°)
Low-Light Application: Day/Night ICR
Input / Output: 1 x Alarm Input / 1 x Alarm Output / 1 x RS485
Audio / 2-Way Talk: Omni-directional Microphone & Embedded Loudspeaker for 2-way talk
Ethernet / Network: 10M/100Mbps Self-adaptive / TCP/IP protocol
Environmental:
Vandal Resistant: N/A
Ingress Protection: IP65 (Front plate)
Construction: Matte Plastic
Installation Options: Surface Mount
Power Input: 12VDC 1A, PoE (802.3af)
Power Consumption: <5W Weight: 0.32kg Dimensions: 71 x 35 x 135mm Other: Keypad: N/A Series: J Series Warranty (Years): 4 Shipping Weight and Dimensions
Includes product packaging
Width: 170 mm
Height: 167 mm
Depth: 173 mm
Weight: 0.50 kg
